Figure 2

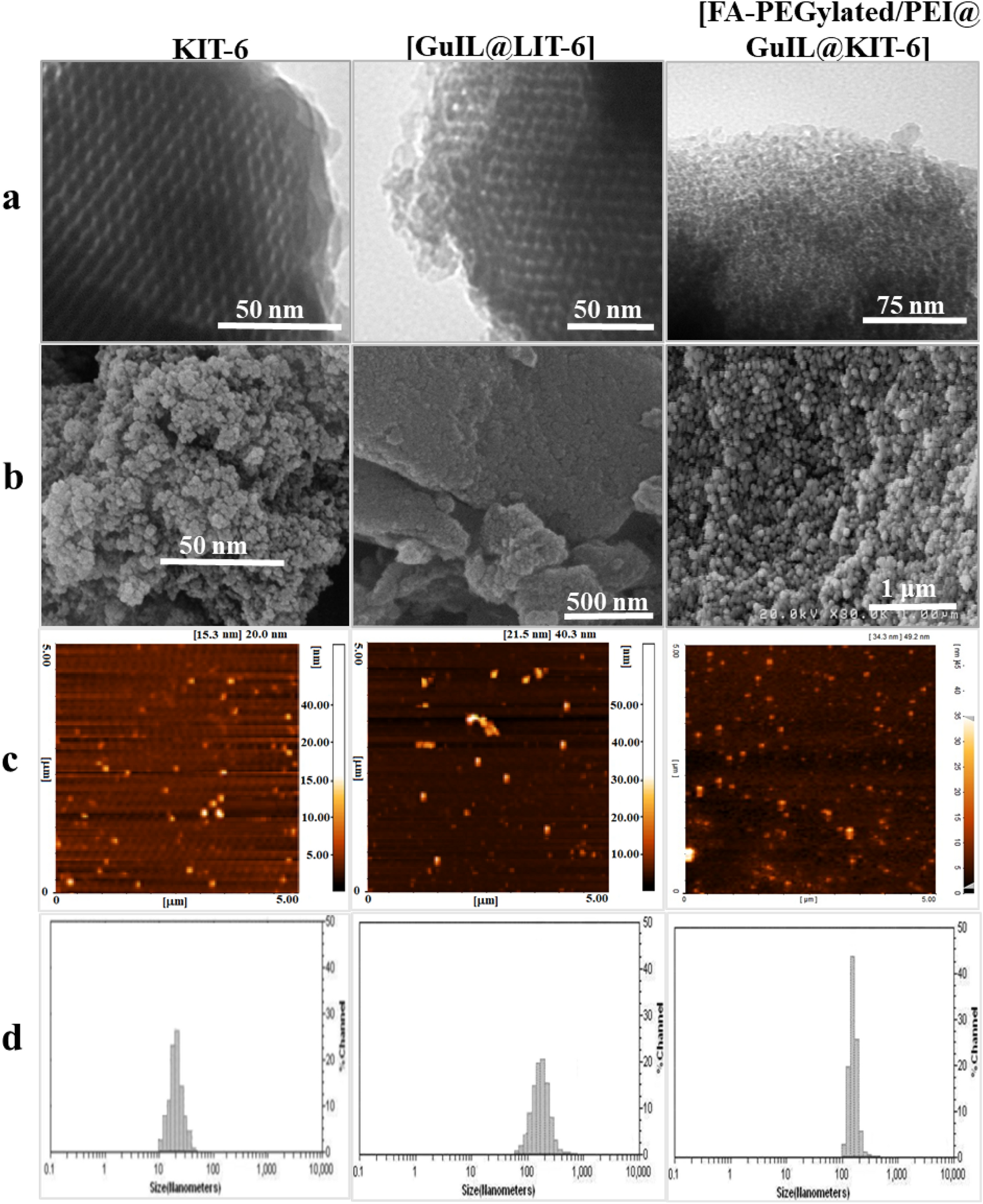

(a) TEM, (b) SEM, (c) AFM and (d) DLS images and (e) BET/BJH results of KIT-6, GuIL@KIT-6 and [FA-PEGylated/PEI@GuIL@KIT-6] nanoparticles.
Figure 2 | Scientific Reports
(a) TEM, (b) SEM, (c) AFM and (d) DLS images and (e) BET/BJH results of KIT-6, GuIL@KIT-6 and [FA-PEGylated/PEI@GuIL@KIT-6] nanoparticles.
