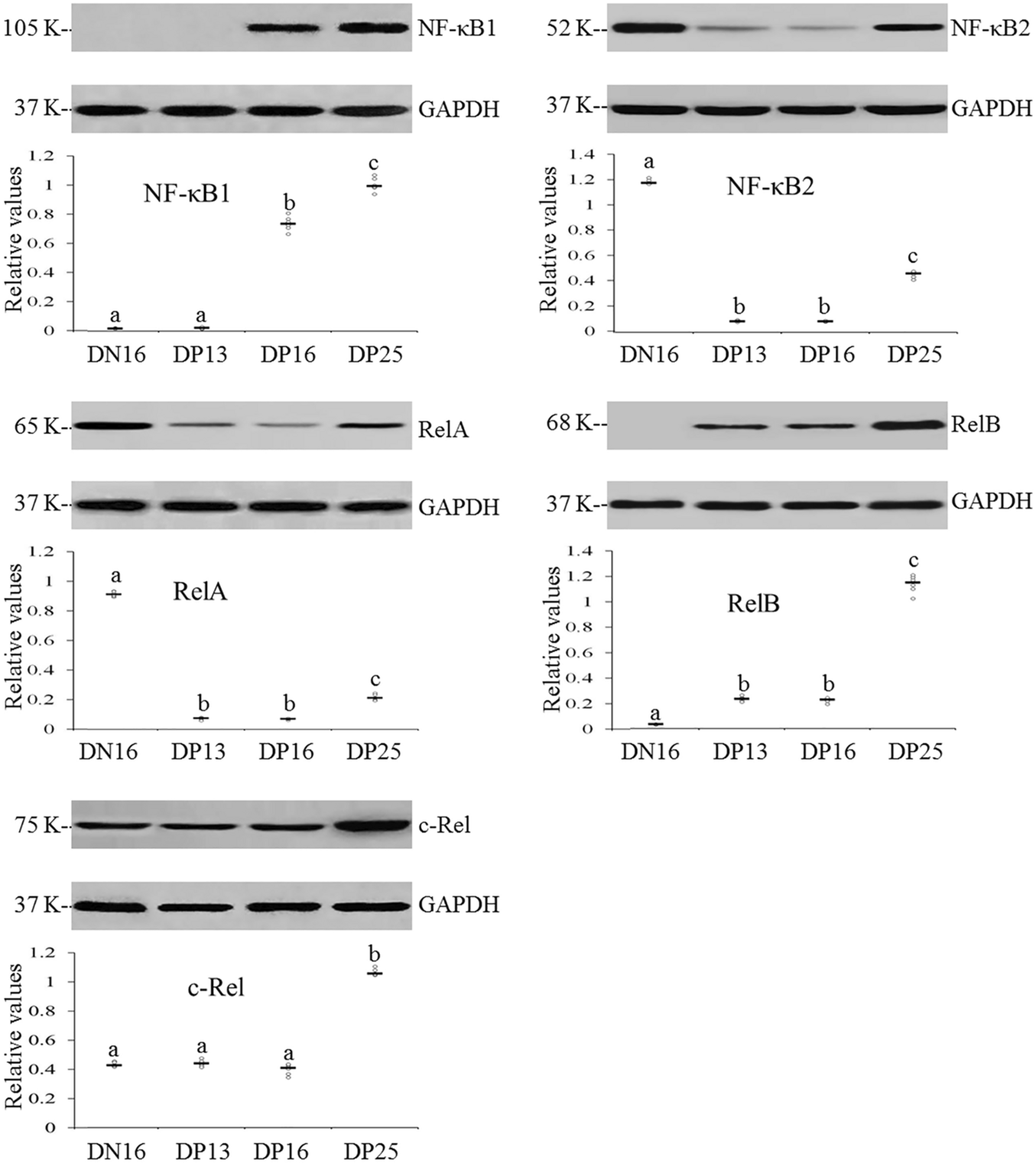

Figure 2
From: Changes in expression of nuclear factor kappa B subunits in the ovine thymus during early pregnancy
Expression of NF-κB1, NF-κB2 RelA, RelB, and c-Rel proteins in the thymus from non-pregnant and pregnant ewes (n = 6 for each group). Note: DN16 = day 16 of the estrous cycle; DP13 = day 13 of pregnancy; DP16 = day 16 of pregnancy; DP25 = day 25 of pregnancy. Significance is denoted by letters; if two groups have different letters, this indicates that the difference between these groups was significant with P < 0.05.
