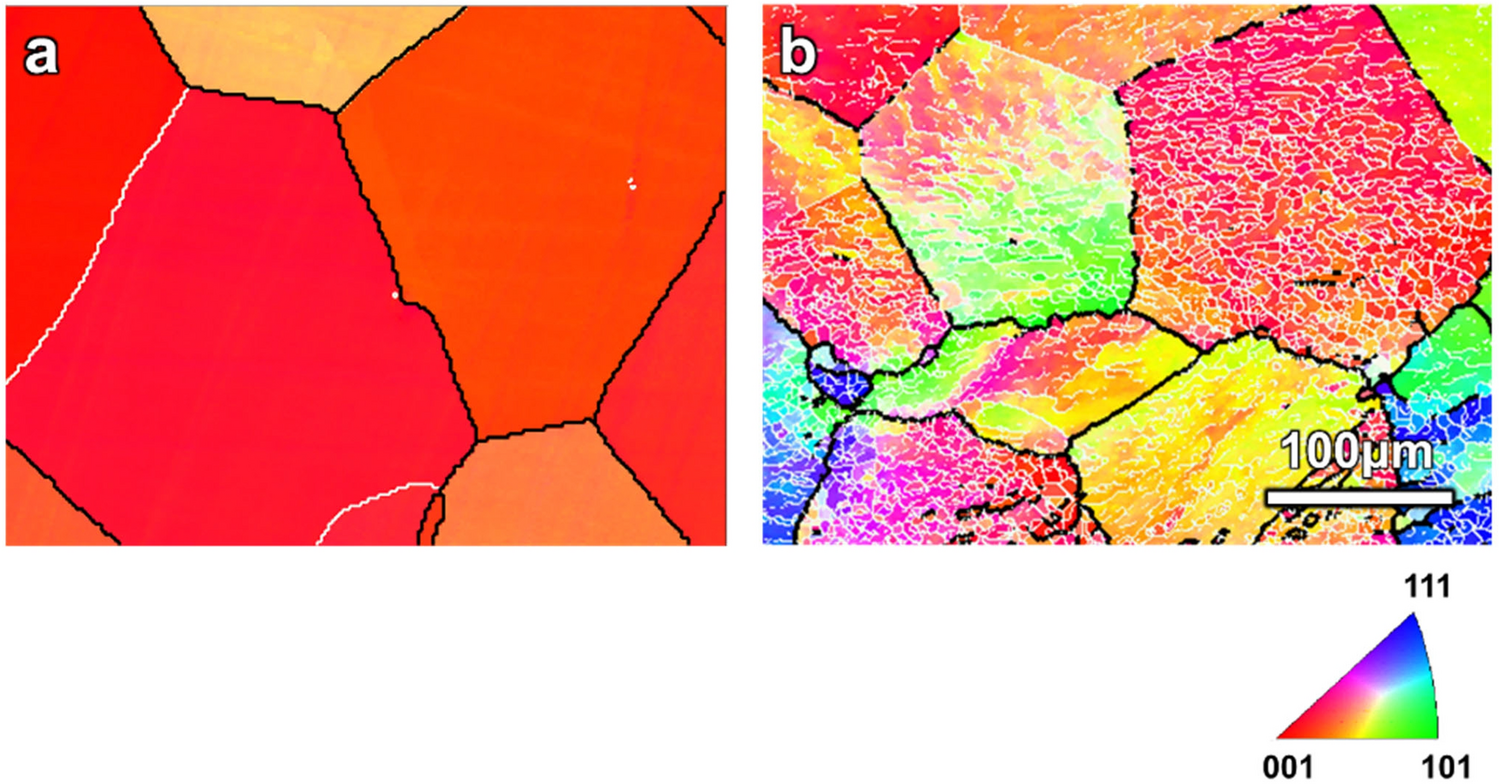

Figure 2

The Inverse pole figure (IPF) map obtained by EBSD showing (a) the fully-annealed coarse grains of 5N Al before t-HPS and (b) the sub-grain boundaries (white nets) formed in these coarse grains when the sample is subjected to a hydrostatic pressure of ~ 3 GPa. The scale bar is the same in (a,b).
