Figure 4 | Scientific Reports

Figure 4

From: Comparative and pangenomic analysis of the genus Streptomyces

Figure 4The alternative text for this image may have been generated using AI.

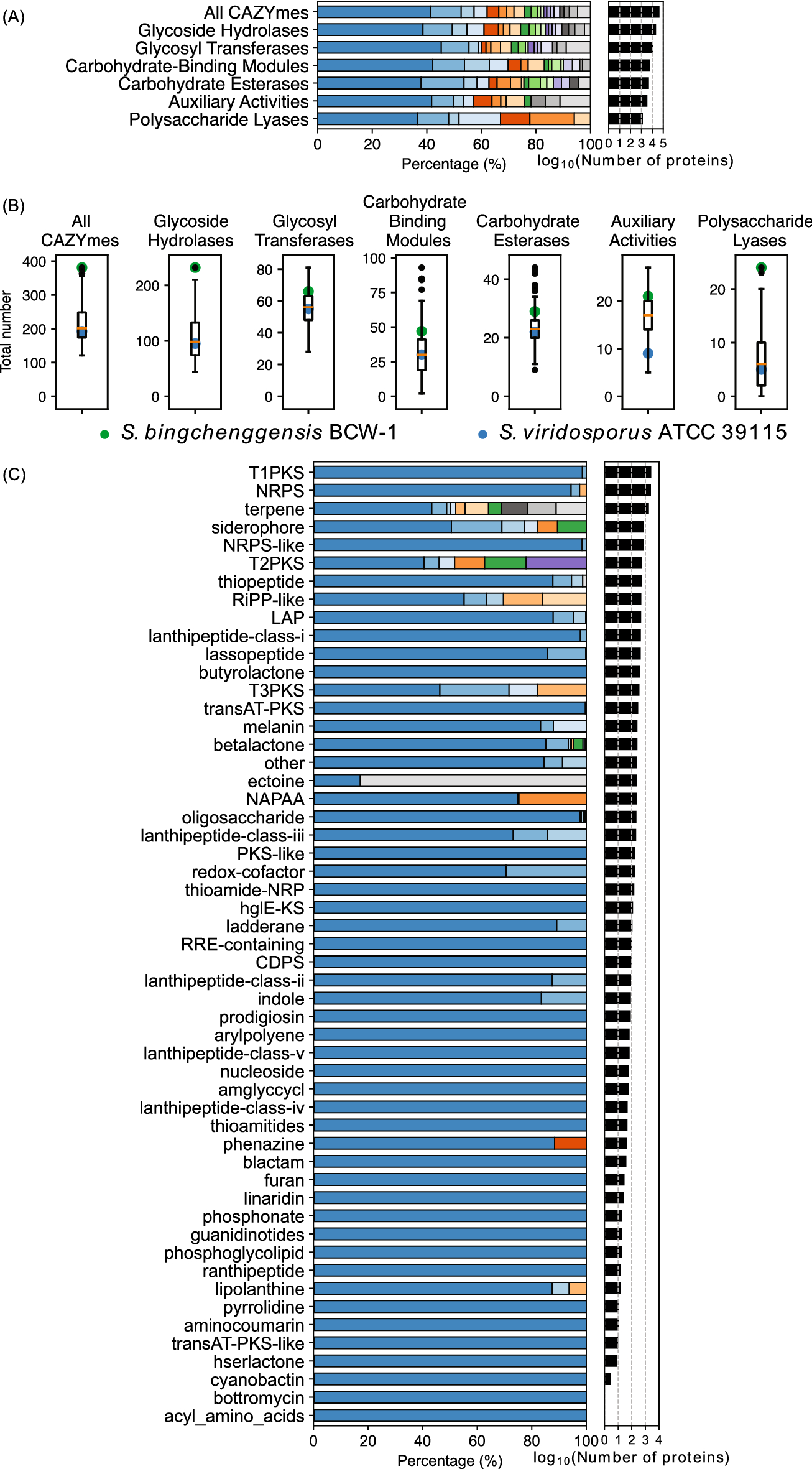

The total number of proteins in each CAZyme group (A) and antiSMASH BGC type (C) and the percentage in each conservation bin. (B) The total number of CAZymes and CAZyme groups encoded in each genome. The colour codes are the same as those in Fig. 3.
