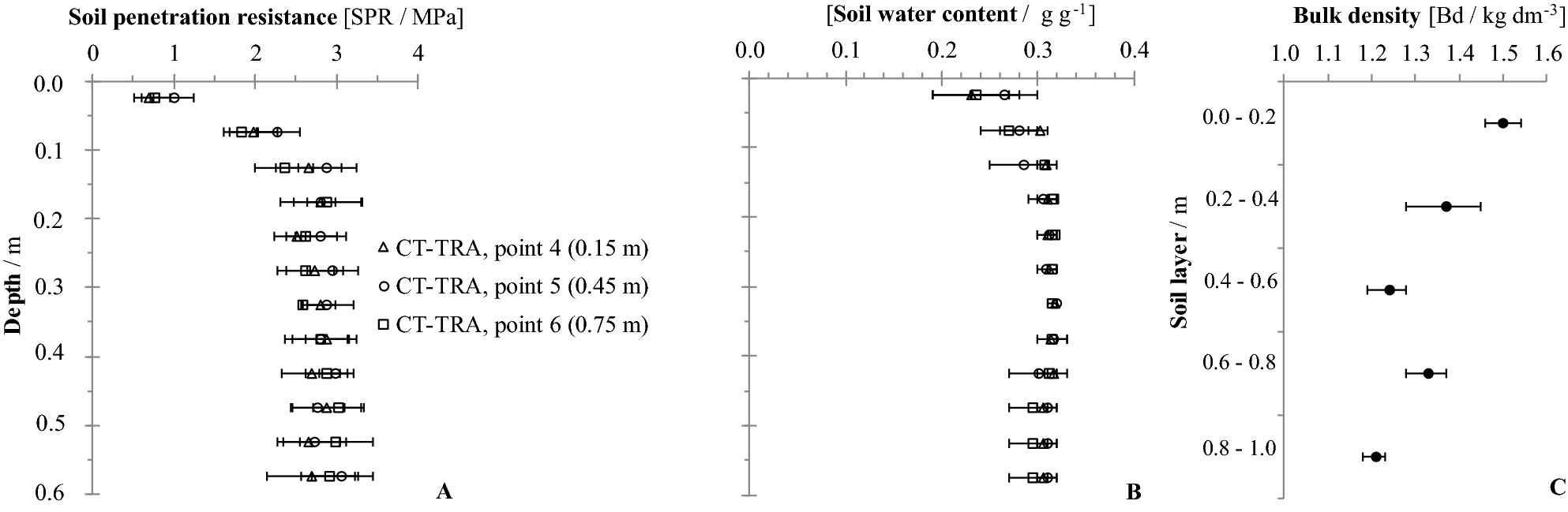

Figure 6

Soil penetration resistance (A) and soil water content (B) for the conventional tillage traffic lane (CT-TRA) at the three sampling positions (0.15, 0.45, and 0.75 m from planting row), and the average bulk density (C) at point 5. If the confidence intervals do not overlap, the differences are significant (p ≤ 0.15).
