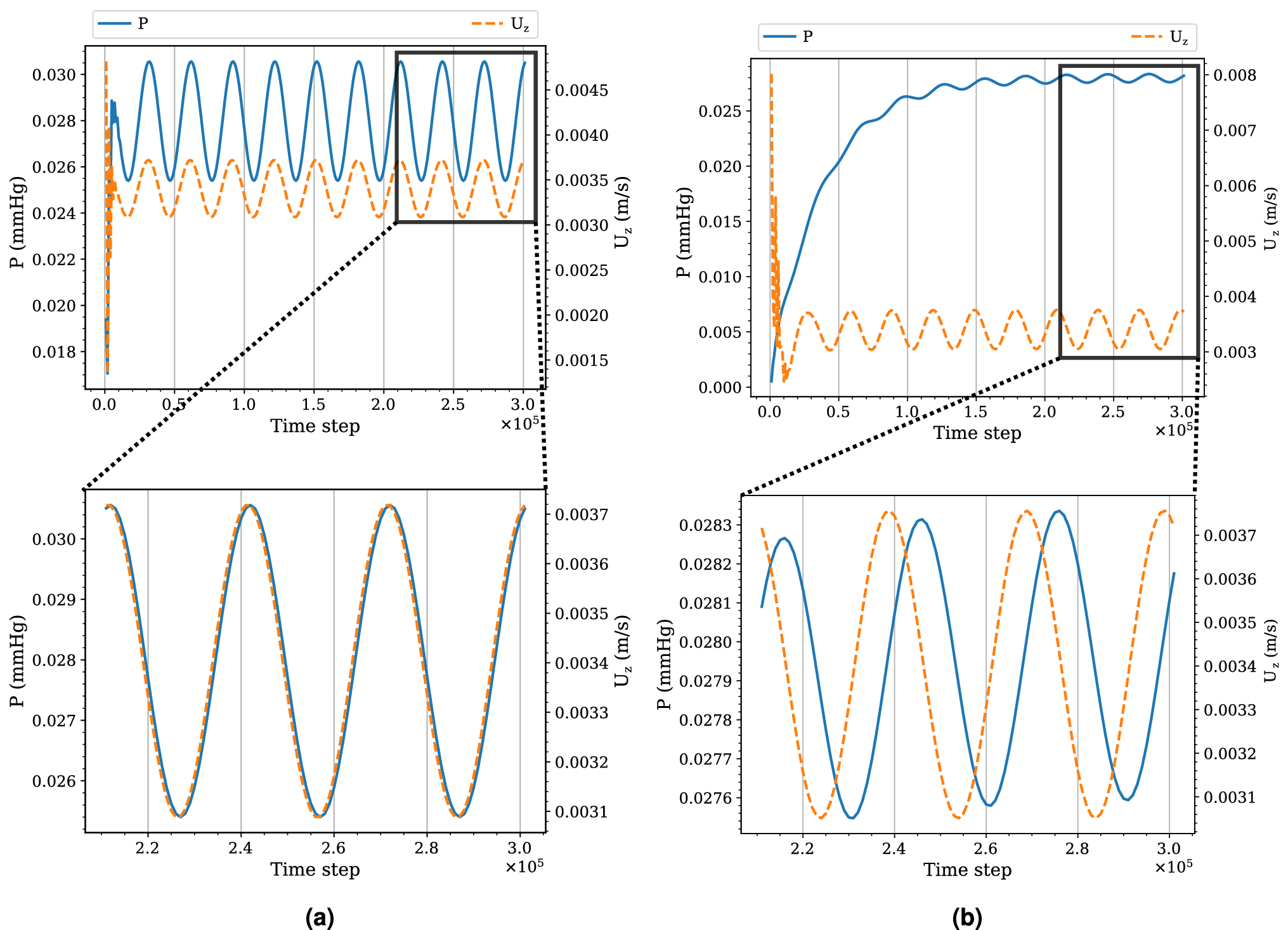

Time series of the pressure (P) and the z-component of the flow velocity (\(U_z\)) at the centre of outlet 1 in simulations with different \(\gamma _{RC}\) but the same \(\gamma _R\). The results are obtained from the simulations on the fine grid of the five-outlets domain using (a) \(\gamma _{RC} = 0.125\) and (b) \(\gamma _{RC} = 8\) with the same \(\gamma _R = 4\). We observe that both P and \(U_z\) converge faster in (b) than (a); the phase lag of \(U_z\) from P is also larger in (b) than (a).
