Figure 7

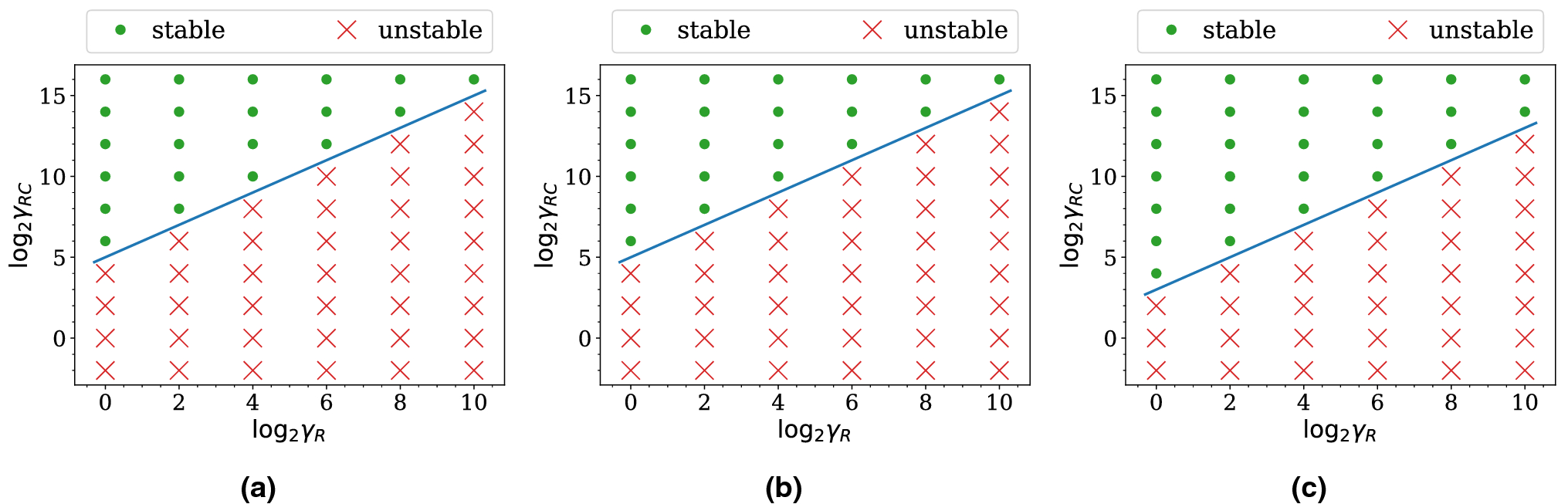

Stability map of the simulations on (a) the coarse grid, (b) the medium grid, and (c) the fine grid of the profunda femoris domain. Notably, the stability and the instability region are separated by a straight line of slope 1 in the maps. The y-intercept of the line is the smallest for the fine grid.
