Figure 5 | Scientific Reports

Figure 5

From: Impact of chitosan administration on titanium dioxide nanoparticles induced testicular dysfunction

Figure 5The alt text for this image may have been generated using AI.

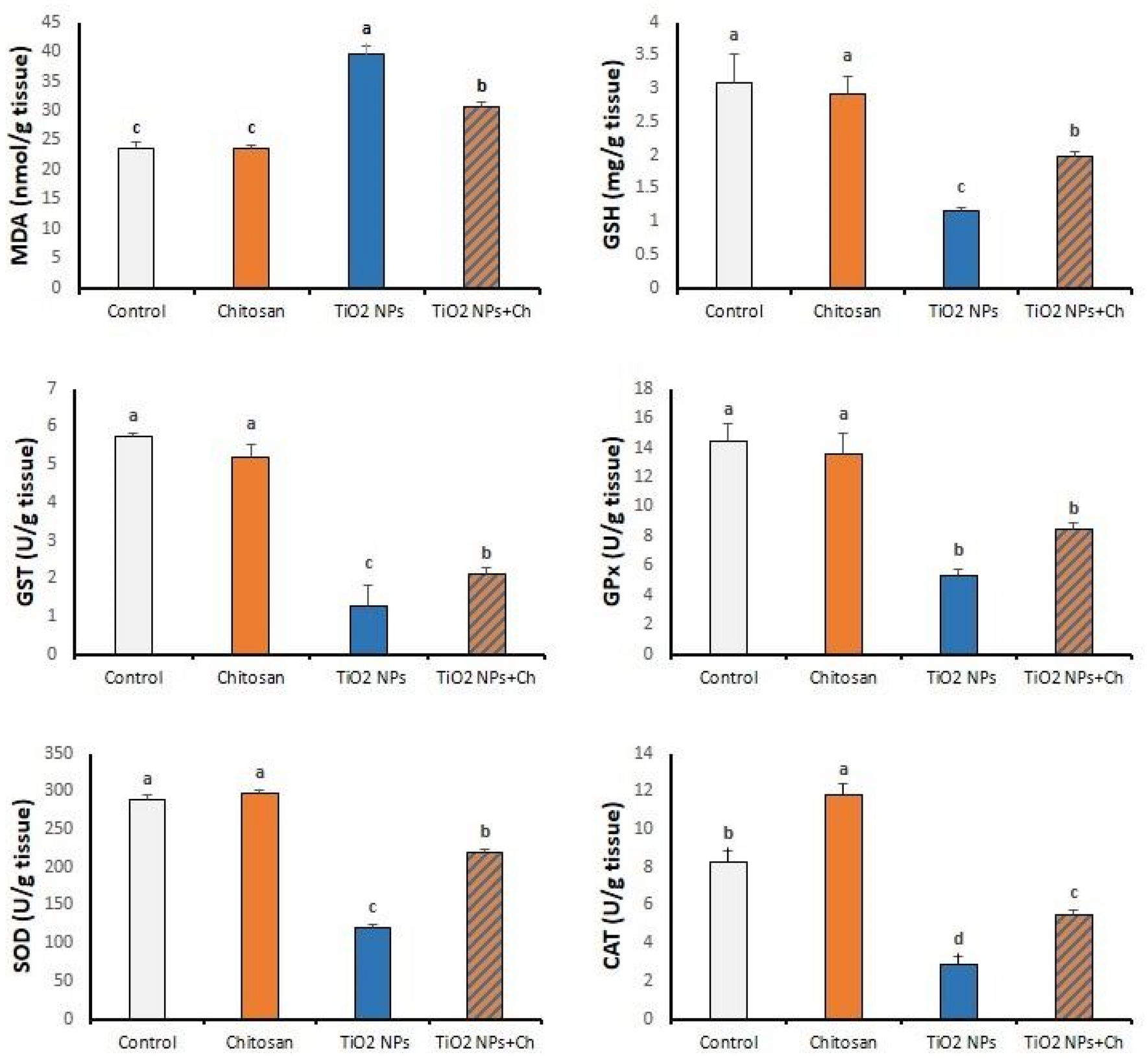

Effects of TiO2 NPs and/or chitosan on testicular oxidative/antioxidant markers. data are presented as means ± SEM. data are presented as means ± SEM. Data are expressed as mean ± standard error of the mean (n = 5). Means in the same row with different superscripts are significantly different (p < 0.05). MDA (malondialdehyde); GSH (Reduced glutathione); GST (Glutathione S transferase); GPx (Glutathione Peroxidase) SOD (superoxide dismutase) and CAT (catalase).
