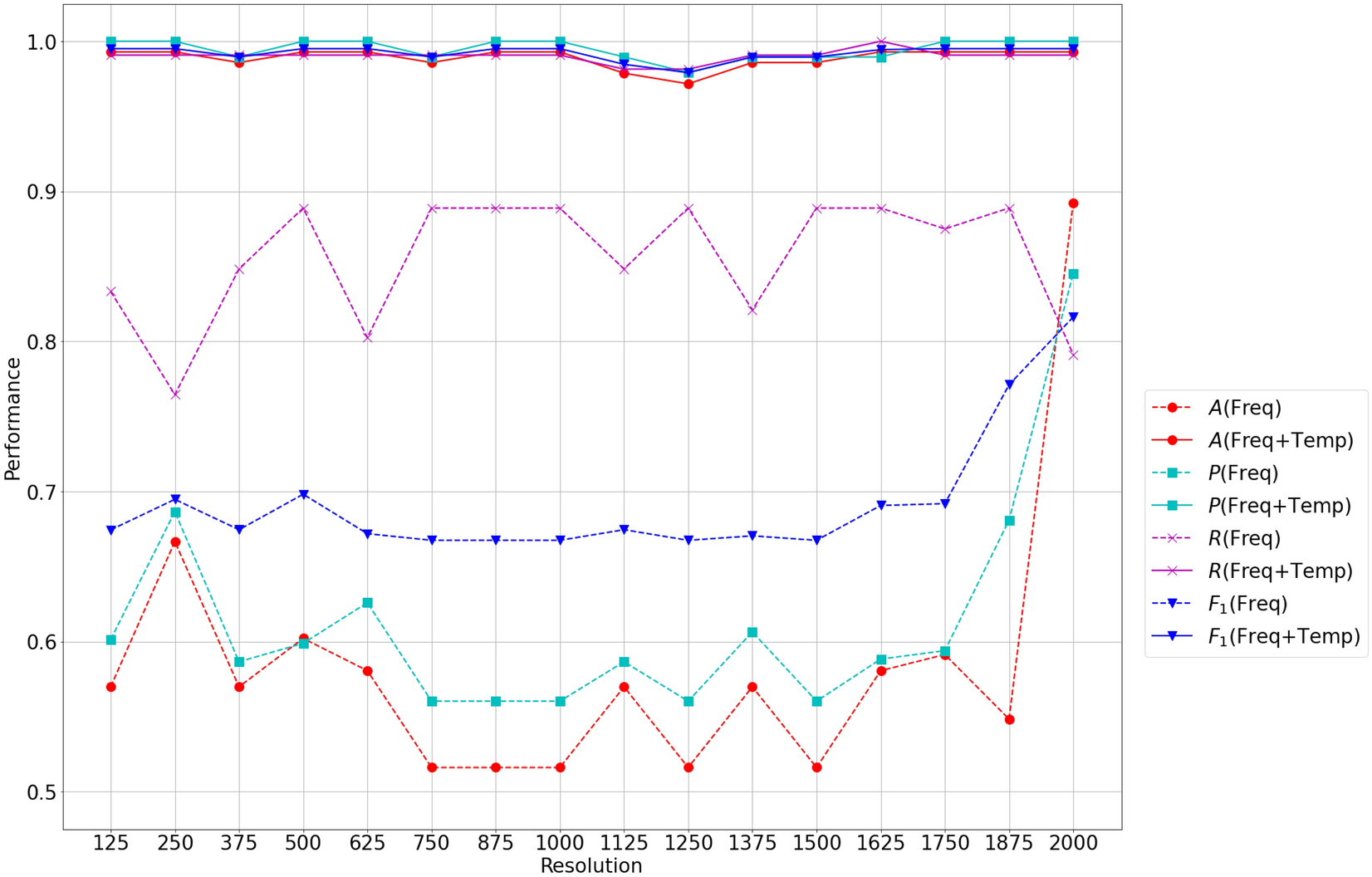

Figure 5

Performance evaluation of the proposed model in terms of accuracy (A), precision (P), recall (R), and \(F_1\) measure (\(F_1\)) as a function of frequency resolution. Solid and dotted lines indicate the results of training the signal in the frequency spectrum (Freq) and spectrogram (Freq+Temp), respectively.
