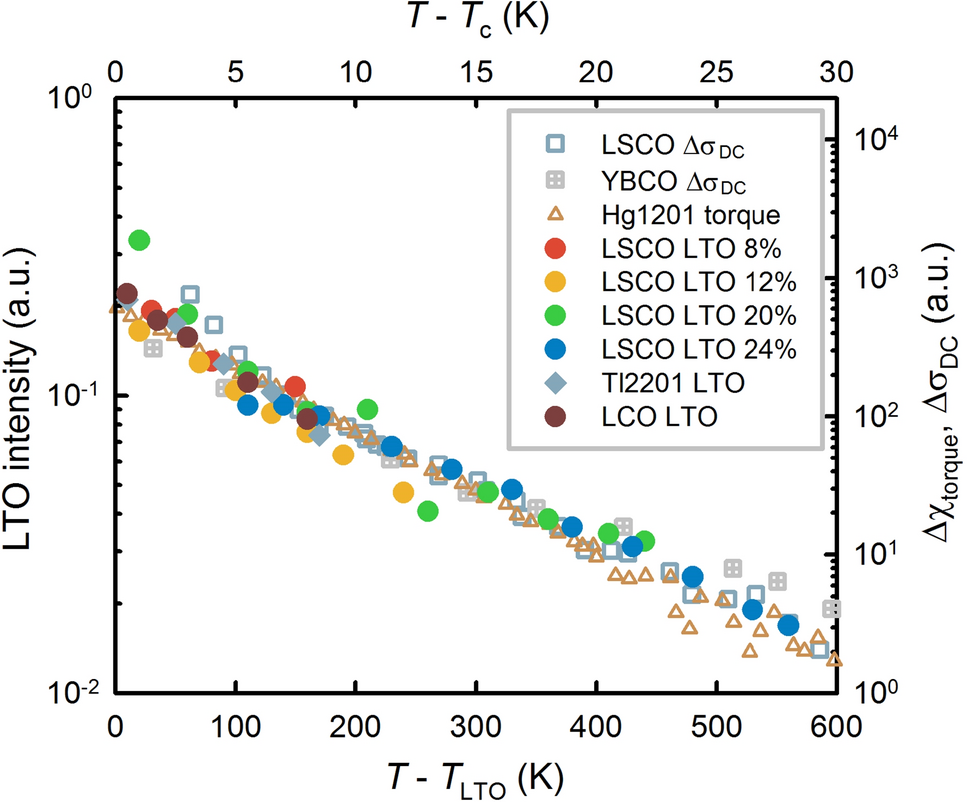

Figure 4
From: Unconventional short-range structural fluctuations in cuprate superconductors
Comparison between orthorhombic and superconducting fluctuations. The diffuse peak intensities from Fig. 3a (left vertical scale, bottom horizontal scale) fall on the same universal exponential curve when the temperature is shifted by TLTO, similar to the effective linewidths (Fig. 3b). The Tl2201 data have been multiplied by a constant to match the LSCO scaling. Signatures of superconducting fluctuations (right vertical scale, top horizontal scale) follow a similar exponential behaviour when shifted by Tc, independent of cuprate family and doping. As representative examples, we show the superconducting contribution to the normal-state conductivity (paraconductivity, ΔσDC) for underdoped LSCO with x = 0.1 (Tc = 28 K)76 and optimally doped YBa2Cu3O6+δ (YBCO, Tc = 93 K)77, as well as torque magnetometry results15 for underdoped HgBa2CuO4+δ (Hg1201, Tc = 70 K). The same dependence is also observed using other probes, including specific heat and nonlinear conductivity/susceptibility (with different slopes for linear and nonlinear response)12,13,14. Neither YBCO nor Hg1201 exhibit LTO-type distortions, which implies that the structural and superconducting fluctuations are affected by the same underlying phenomenon. The scaling suggests that a hidden, universal inhomogeneity determines the behaviour of both fluctuation regimes, leading to remarkable emergent simplicity.
