Figure 4

From: Alzheimer’s disease large-scale gene expression portrait identifies exercise as the top theoretical treatment

Figure 4

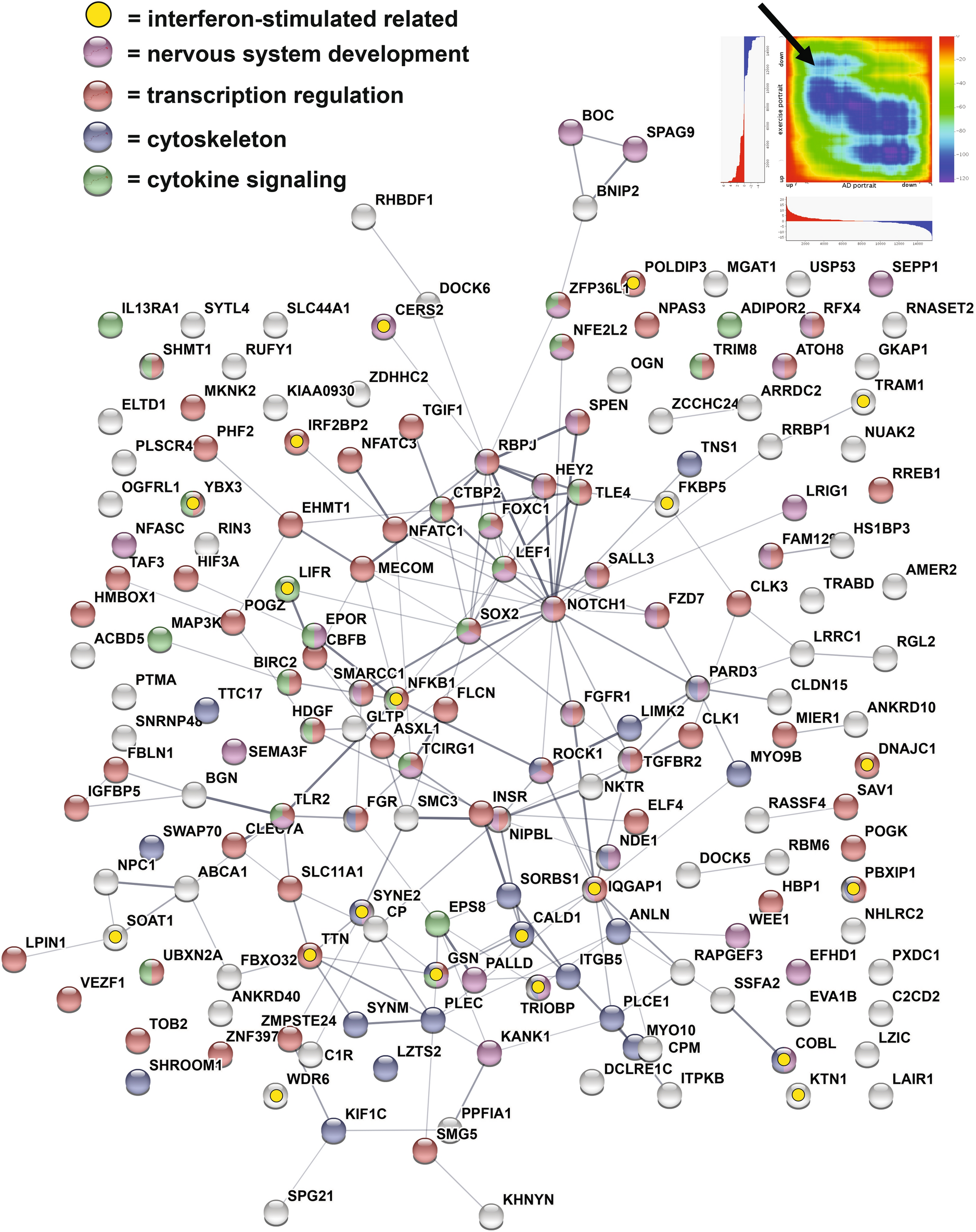

Genes upregulated in AD and downregulated with exercise composite. The 173 genes upregulated with AD and reversed by the exercise composite are plotted in STRING15. Lines between genes indicates connections and width of line reflects strength of evidence. Enrichment was found for: nervous system development (purple); transcription regulation (red); cytoskeleton (blue); cytokine signaling (green); and interferon-stimulated related (yellow). Upper right shows RRHO heat map111 comparing exercise composite (Y axis) and AD portrait (X axis). Arrow highlights reversal of upregulated genes in AD by exercise.
