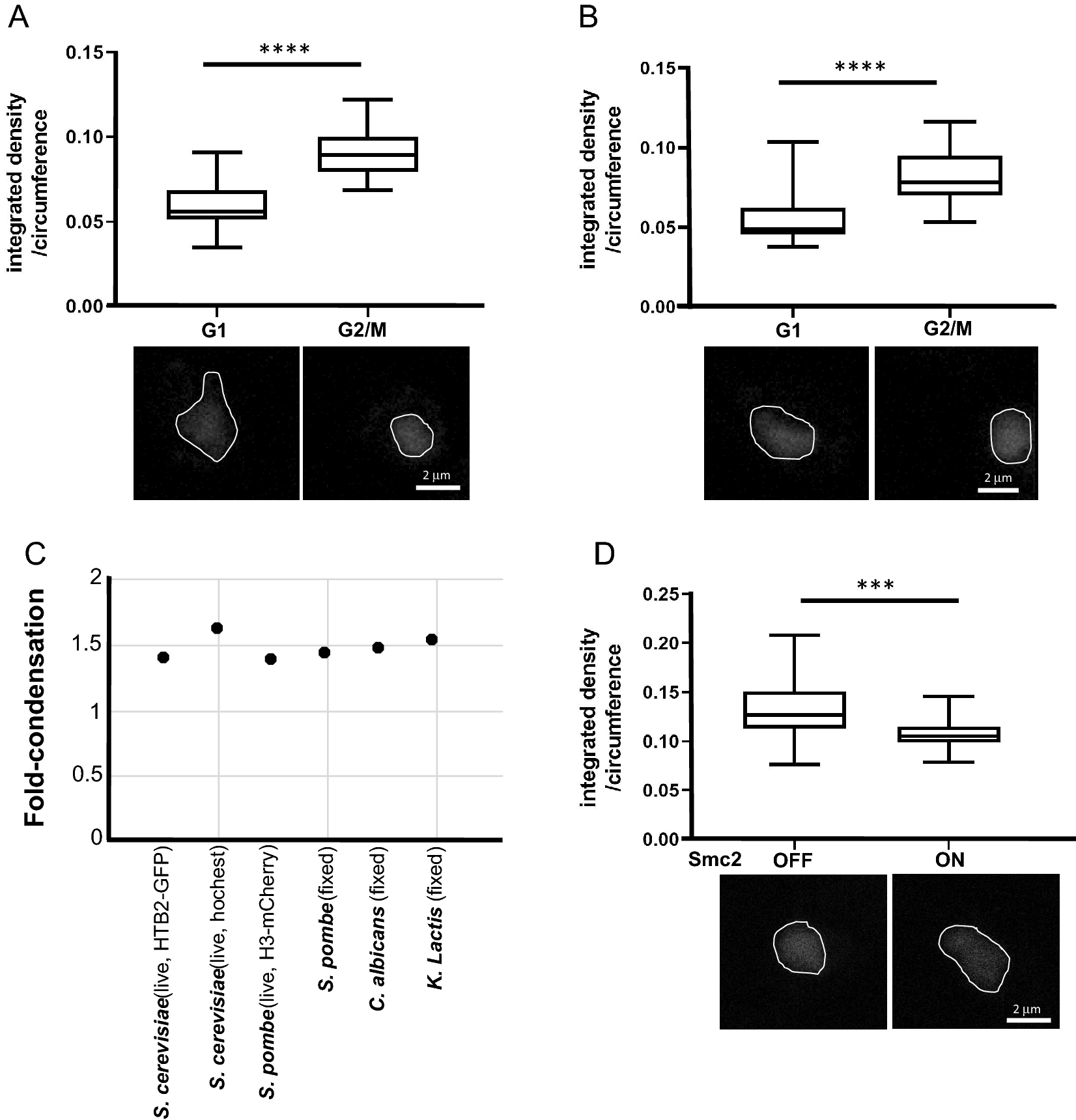

Figure 2
From: Fold-change of chromatin condensation in yeast is a conserved property
Analysis of chromosome compaction in different yeast cells. (A) K. lactis cells were grown, fixed, and stained with DAPI. 25 nuclei were analyzed from each cell cycle phase. **** p < 0.0001. (B) C. albicans cells were fixed and stained with DAPI. 30 nuclei were analyzed from each cell cycle phase. **** p < 0.0001. (C) Fold-compaction of chromatin in G2/M phase relative to G1 phase for yeast species is indicated. 25 nuclei were analyzed from each cell cycle phase. (D) C. albicans cells of strain Y30 (Ptet-SMC2) were grown to mid-log phase without and with doxycycline, fixed, and stained with DAPI. G2/M phase cells were selected based on morphology and analyzed via two-photon microscopy. 30 nuclei were analyzed from each condition. **** p < 0.0001.
