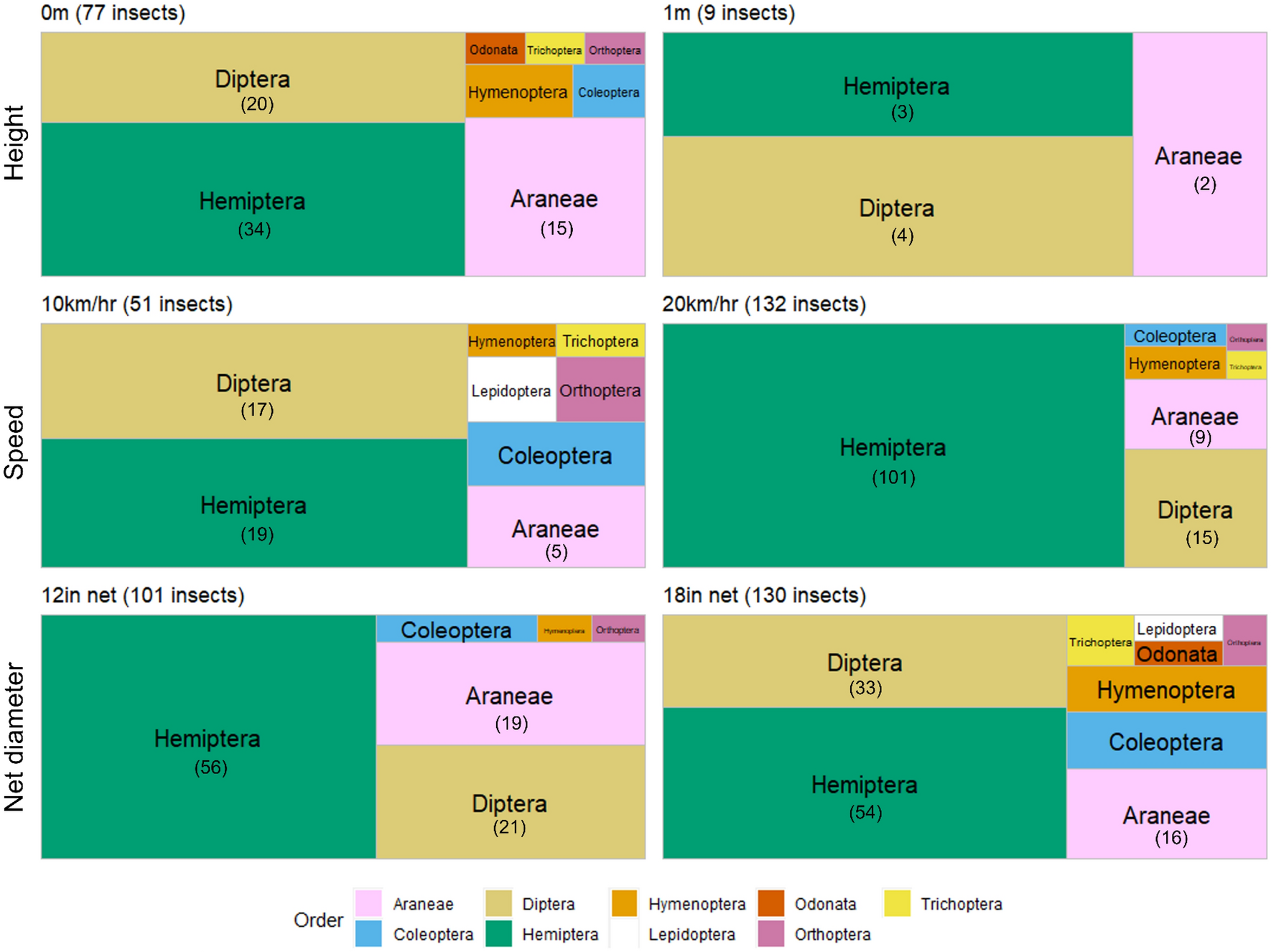

Figure 3
From: Optimal settings and advantages of drones as a tool for canopy arthropod collection
Treemap of insect sample composition collected by different drone settings; height (0 m vs. 1 m), speed (10 km/hr vs. 20 km/hr), and net diameter (12in vs. 18in). Default settings were 0 m, 10 km/hr, and 12 in. Boxes represent total proportion of the insect order compared to total insects caught using ta particular method. The total number of individuals collected of the top 3 orders collected by each setting are marked below the labels.
