Figure 4 | Scientific Reports

Figure 4

From: Phase separation in mullite-composition glass

Figure 4The alternative text for this image may have been generated using AI.

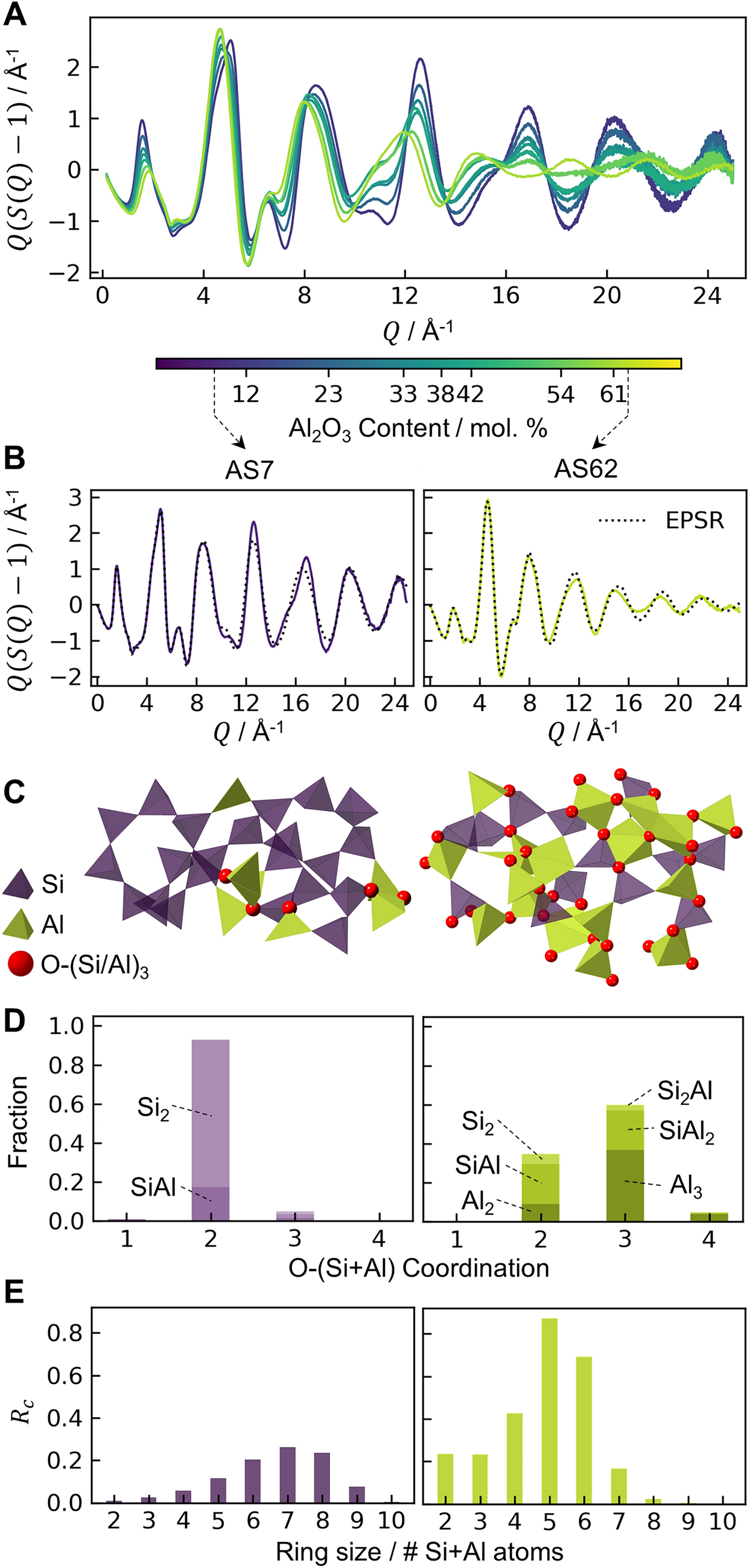

Structure of the endmembers in phase-separated mullite and aluminosilicate glasses. (A) X-ray diffraction interference functions of phase-separated glasses, with compositions ranging AS12-AS61. (B) Interference functions for the endmember compositions, AS7 and AS62, linearly extrapolated from the glasses in (A). EPSR provides structural models of the endmembers consistent with the experimental data: (C) structure visualizations, (D) oxygen coordination environments, and (E) ring size distributions of AS7 and AS62 endmembers. \({R}_{c}\) is the number of -O-(Si/Al)- rings normalized by the number of atoms in the simulation volume.
