Figure 1

From: Instantaneous 4D micro-particle image velocimetry (µPIV) via multifocal microscopy (MUM)

Figure 1

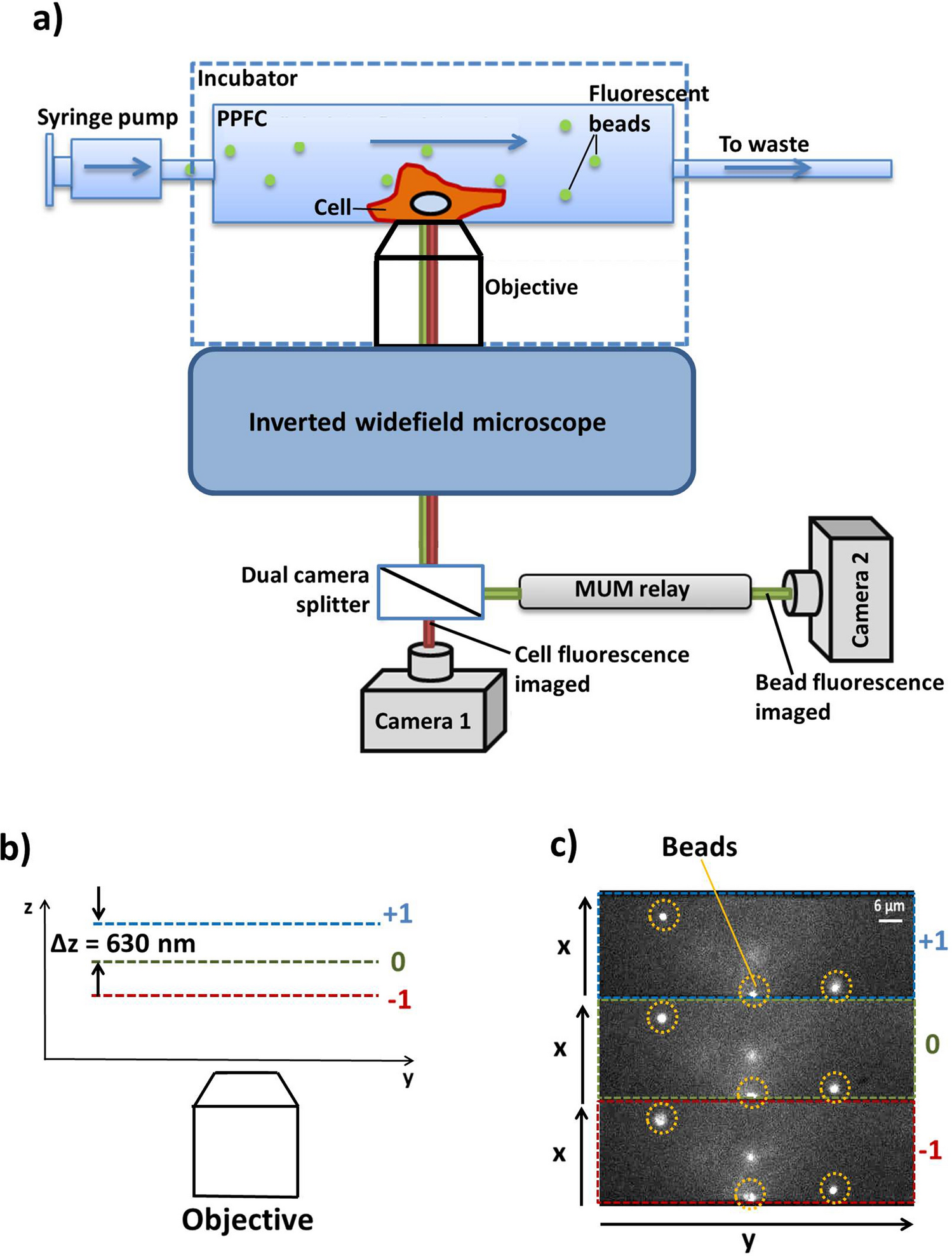

(a) Schematic representation of the MUM setup used to perform µPIV. The dual camera splitter and Camera 1 were added only for the live cell experiment. (b) Not-to-scale schematic of the axial position of the three planes acquired simultaneously with the MUM setup. (c) Example camera image showing beads acquired with the MUM setup. The three different planes imaged simultaneously are indicated.
