Figure 7

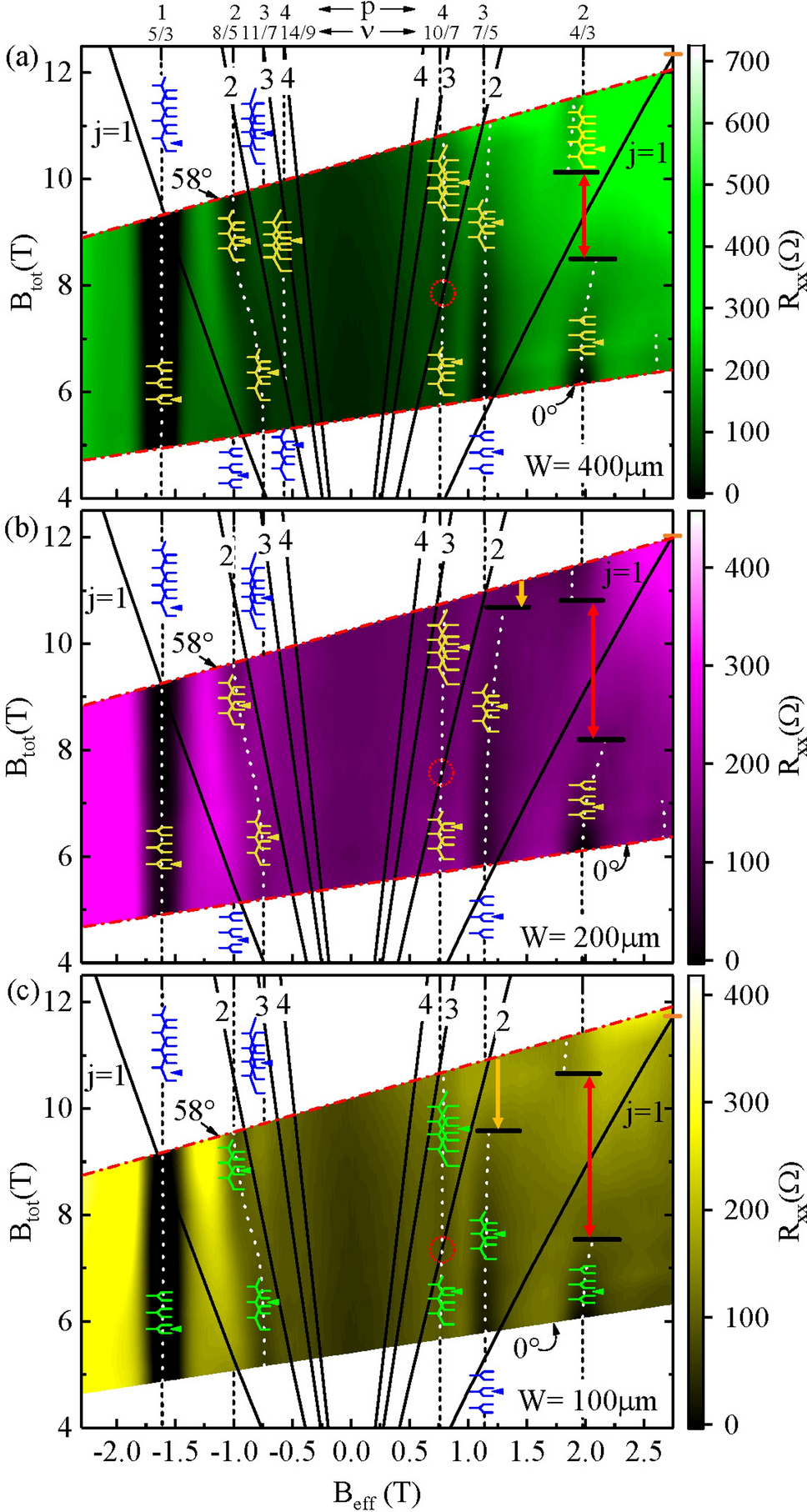

\(R_{xx}\) color plots with coincidence fan charts versus \(B_{eff}\) and \(B_{tot}\). (a), (b) and (c) depict color plots of \(R_{xx}\) versus \(B_{tot}\) and \(B_{eff}\) for W= 400, 200, and 100 \(\mu m\), respectively. The dotted lines follow the \(R_{xx}\) minima. The dashed lines mark specified odd-denominator fractional fillings of Landau levels. The black curved lines show the trajectory of the Zeeman-Landau level (LL) coincidence condition in the \(B_{tot}\) - \(B_{eff}\) space. The CF-LL occupancy in indicated by the Landau level cartoons. The horizontal lines in black, with the colored vertical arrowed lines in red and yellow, mark the boundary of the size-dependent angular interval where the diagonal resistance minimum vanishes. Here, \(T=\) 55 mK.
