Figure 4

From: A pseudovirus-based platform to measure neutralizing antibodies in Mexico using SARS-CoV-2 as proof-of-concept

Figure 4

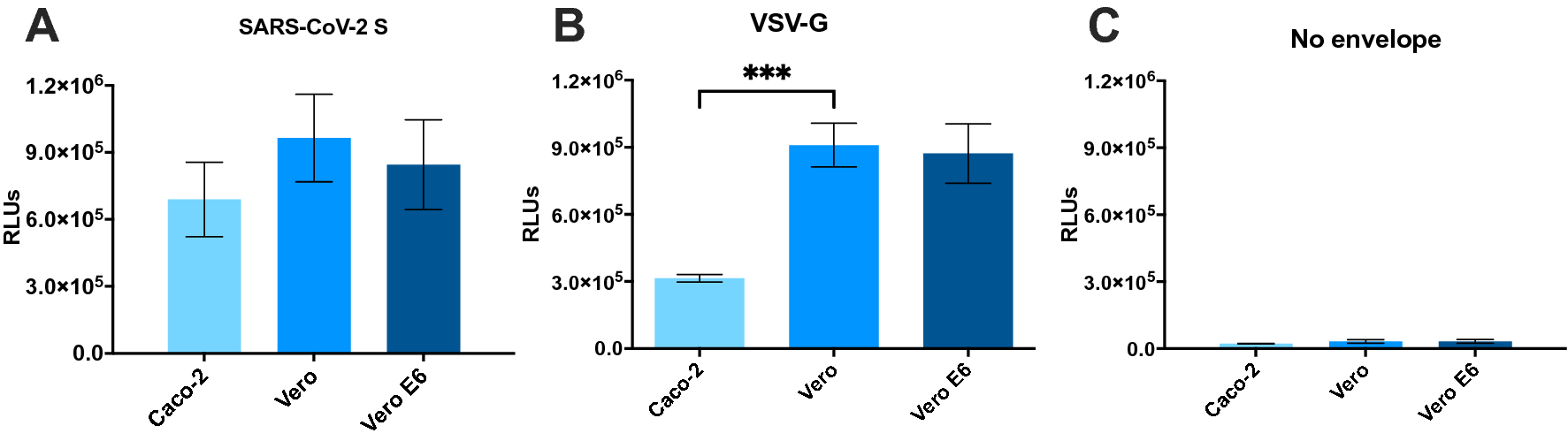

Transduction levels in Caco-2, Vero, and Vero E6 cells 24 h post-inoculation with VP, as evidenced by luminescence in relative light units (RLUs) caused by Nluc digestion of a furimazine substrate. The 3 cell lines were infected with 140 pg VP pseudotyped using (A) SARS-CoV-2 S, (B) VSV-G, or (C) no envelope glycoprotein. Results represent the average of 3 separate experiments performed in duplicate, and standard deviations of these results are shown, p < 0.001 (***).
