From: Modeling electronic health record data using an end-to-end knowledge-graph-informed topic model

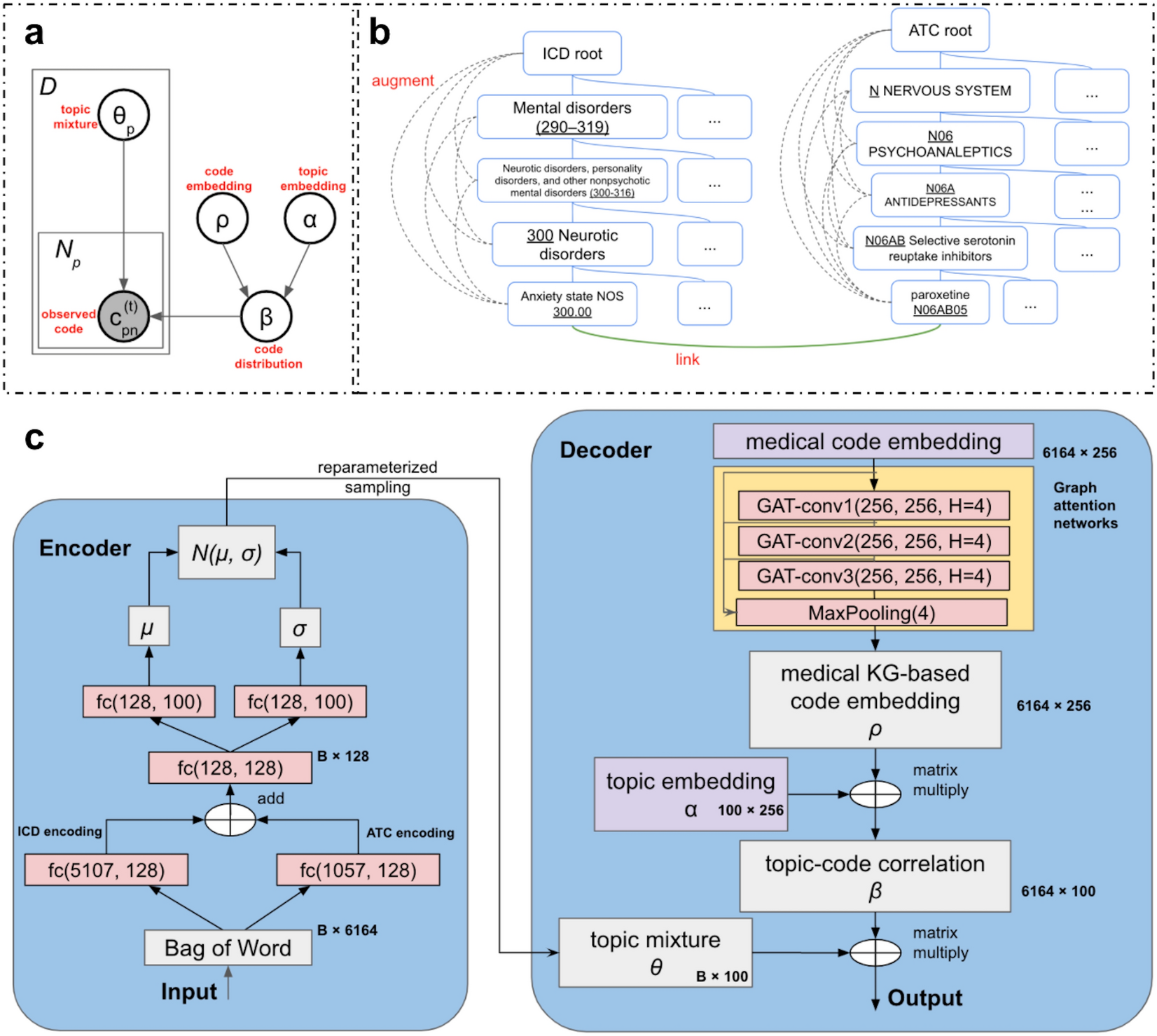

GAT-ETM model overview. (a) The probabilistic graphical model view of GAT-ETM. (b) The augmentation and merger applied on the taxonomy knowledge graphs. (c) The illustration of the deep learning architecture used to perform variational inference over the GAT-ETM model.
