Figure 1
From: The development of an automated machine learning pipeline for the detection of Alzheimer’s Disease

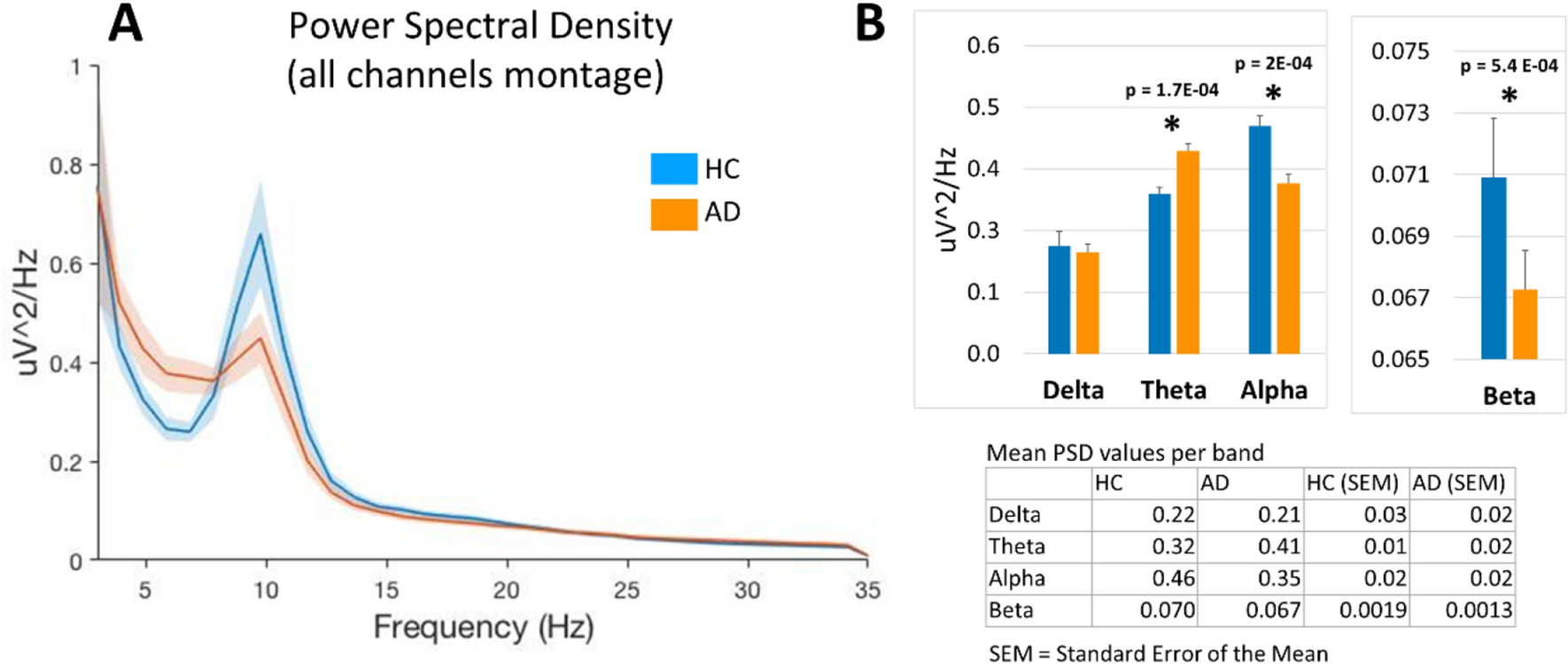

(A) Power spectral density (all channel montage obtained by averaging PSD for all channels in each subject) in healthy control subjects (HC, n = 23) and those with Alzheimer’s disease diagnosis (AD, n = 18) in the 3–35 Hz frequency range (shaded areas indicate SEM). (B) Mean power in the frequency bands delta (1–4 Hz), theta (5–9 Hz), alpha (10–13 Hz) and beta (14–32 Hz) based on data in panel A (*p < 0.05). Figure generated using Matlab R2021b Update 3 (https://www.mathworks.com/).
