Figure 1

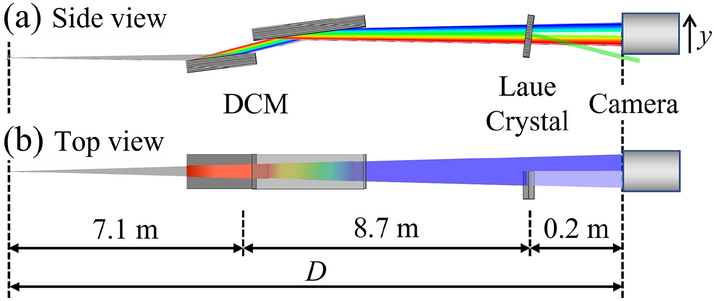

Schematic of the X-ray beam property analyzer setup in (a) the side view and (b) the top view. Note that the partial beam (green) in (a) represents the downwards diffracted beam by the Laue crystal.
Figure 1 | Scientific Reports
Schematic of the X-ray beam property analyzer setup in (a) the side view and (b) the top view. Note that the partial beam (green) in (a) represents the downwards diffracted beam by the Laue crystal.
