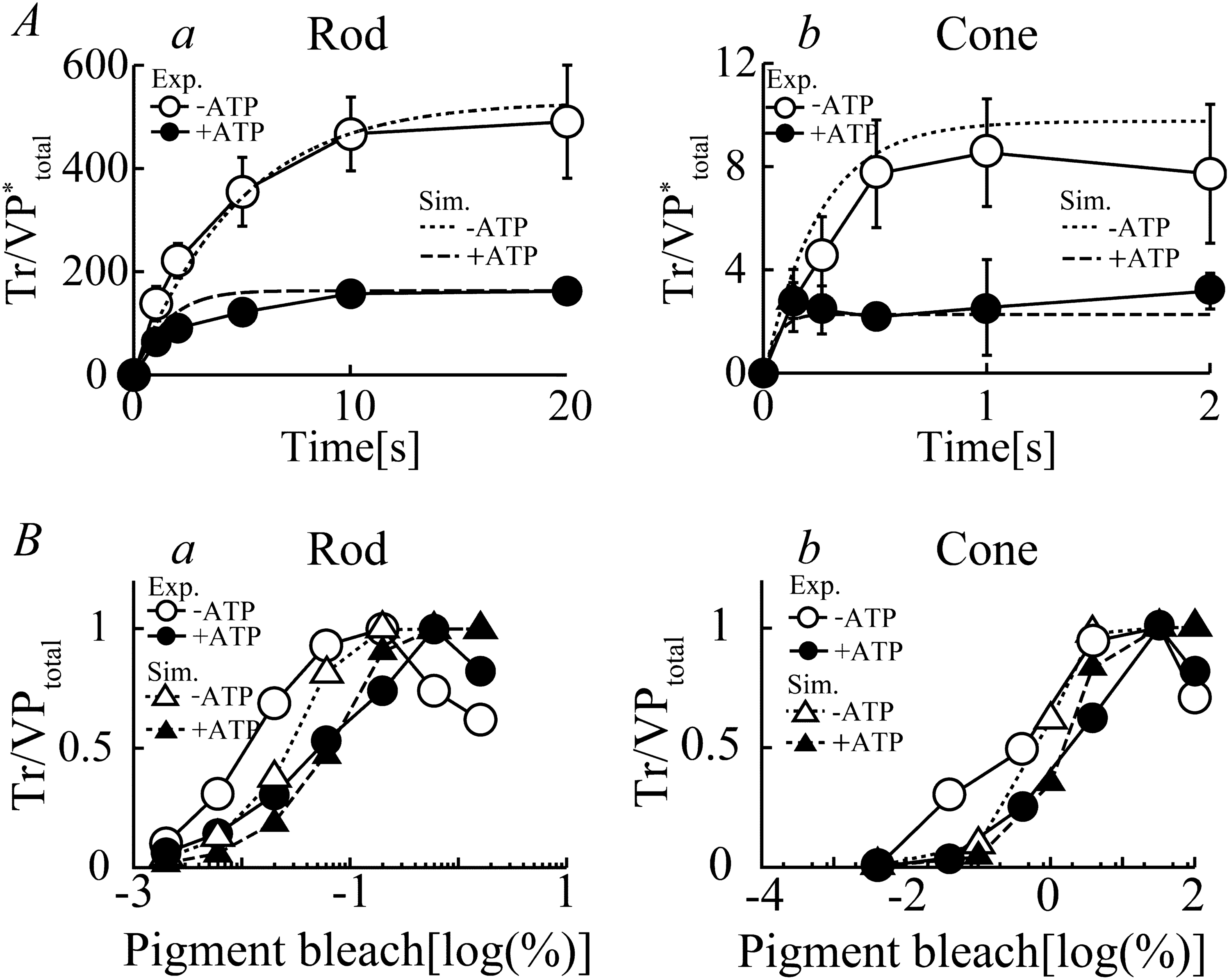

Figure 3

Transducin activation in rods and cones. (A) The time courses for Tr activation (the number of GTPγS molecule, a nonhydrolyzable GTP analog, incorporated per VP*) in the membrane preparations of purified carp rods and cones in response to light stimulation (0.0085% for rods (a, circle) and 0.25% for cones (b, circle)) in the presence (filled symbols) and absence (open symbols) of ATP (1 mM) as determined by biochemical experiments¹⁸. Corresponding simulation results (dotted lines (−ATP) and dashed lines (+ ATP) in a and b were superimposed onto the experimental results. (B) Light-induced GTPγS binding as a function of flash intensity in rods (a, circle, after 40 s stimulation) and cones (b, circle, after 20 s stimulation) in the presence (filled symbols) and absence (open symbols) of ATP (0.1 mM) normalized to maximum values. Simulated results for rods (a, triangle) and cones (b, triangle) reproduced under corresponding experimental conditions in the presence (filled symbols) and absence (open symbols) of ATP are also shown in the figure. Values for the rate constants for VP phosphorylation, kRK1–kRK6 and kiRK1–kiRK6, were set to 0 for simulation of experimental results obtained without ATP.
