Figure 5
From: Mathematical analysis of phototransduction reaction parameters in rods and cones

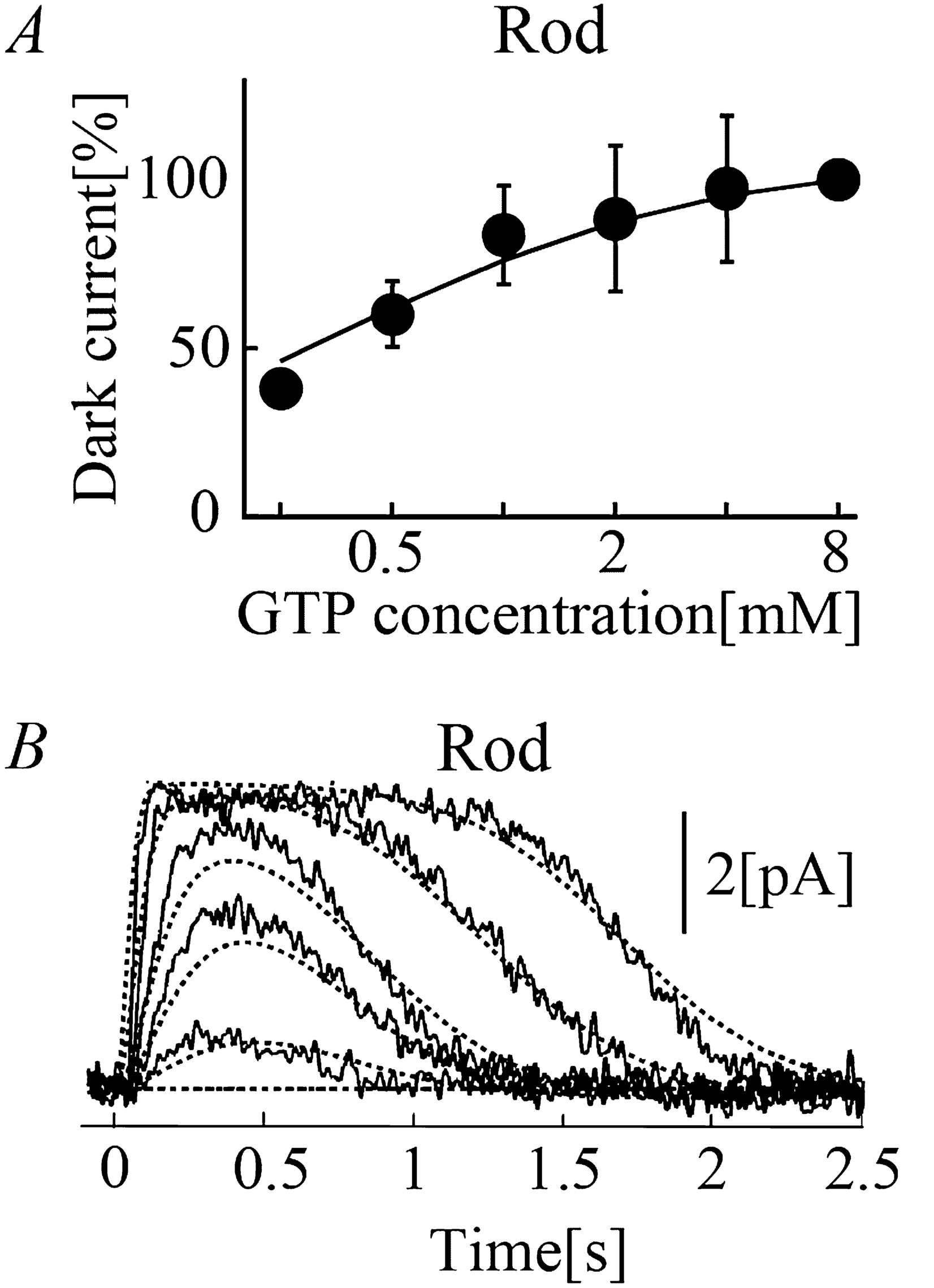

ICNG in rods and cones. (A) [GTP]i-dependent ICNG recorded from a truncated outer segment of frog rods (circle), normalized to ICNG at 8 mM [GTP]i14. Corresponding simulation results at steady-state were superimposed onto the experimental data (solid line). (B) Time courses of light-induced ICNG as a function of flash intensity recorded from the outer segments of the carp rods (light stimuli; 5.1E−6, 1.6E−5, 5.1E−5, 1.6E−4, and 5.1E−4%)14. Simulated ICNG for rods reproduced under the corresponding experimental conditions was superimposed onto the experimental results (dotted lines).
