Figure 3

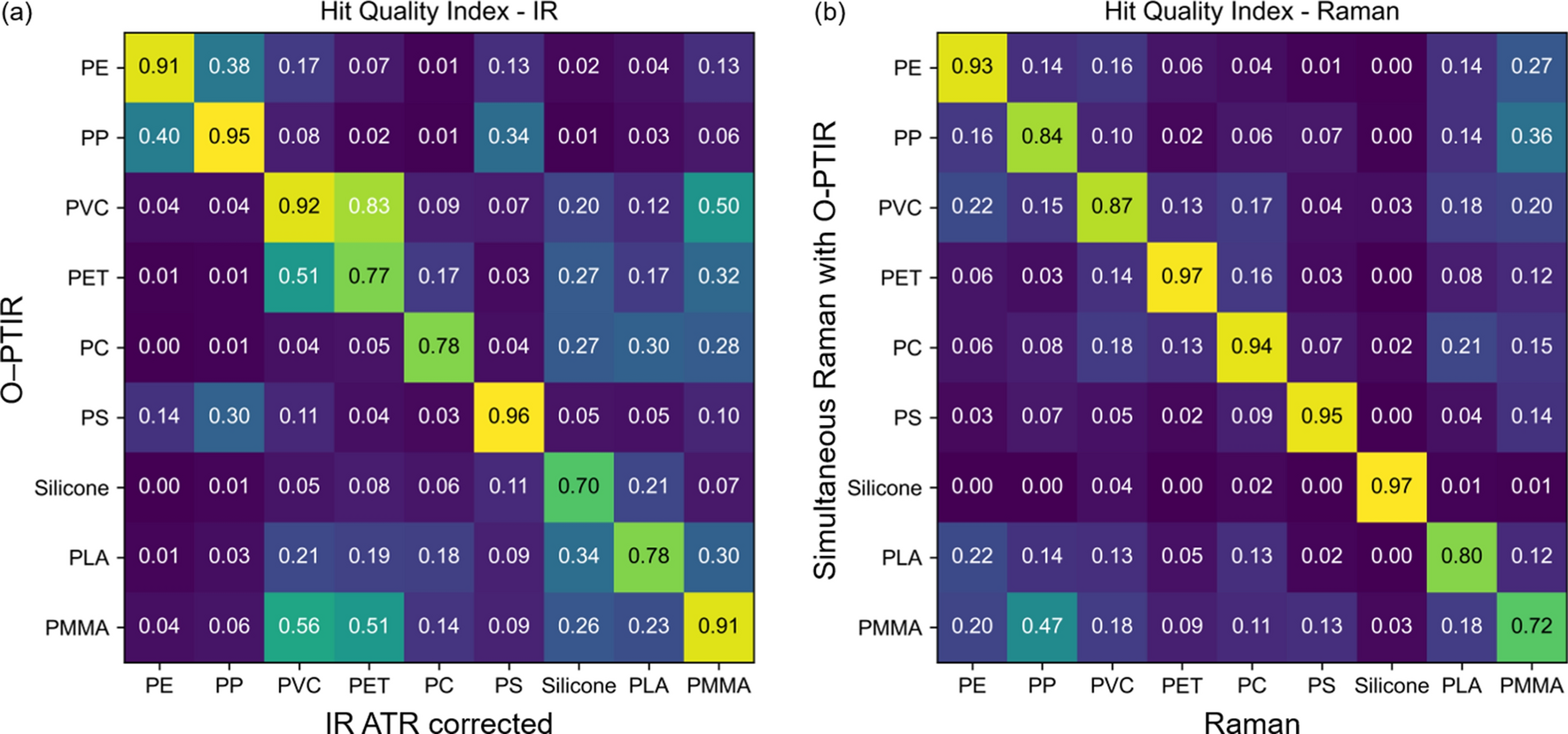

Hit quality index (HQI) of the acquired IR spectra from the FTIR system and the O-PTIR instrument (a) and the Raman spectra of the standalone Raman system and the Raman option of the O-PTIR instrument (b). The values are color-coded from dark violet to yellow to improve visibility.
