Figure 6

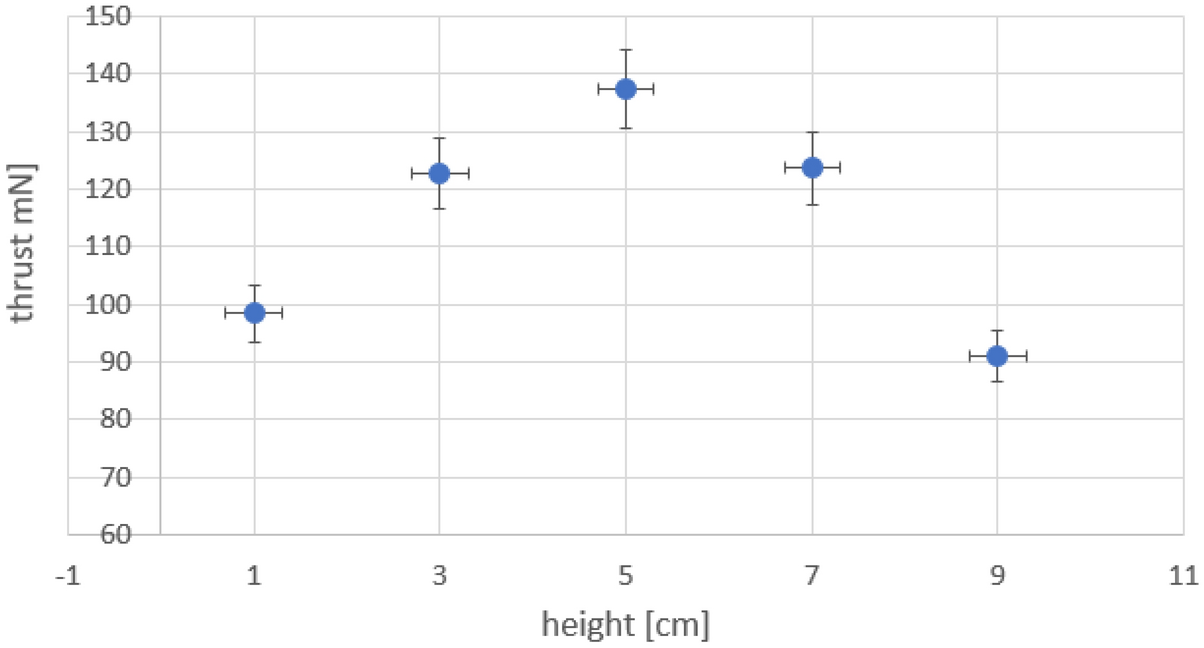

Sample variation of the axial thrust with the height above the propeller at − 98 kV for a RIE with toroidal collector. Error bars are 3 mm height positioning error and 5% estimated measurement thrust error.
Figure 6 | Scientific Reports
Sample variation of the axial thrust with the height above the propeller at − 98 kV for a RIE with toroidal collector. Error bars are 3 mm height positioning error and 5% estimated measurement thrust error.
