Figure 8

From: Toroidal counter electrode for ionic propulsion

Figure 8The alternative text for this image may have been generated using AI.

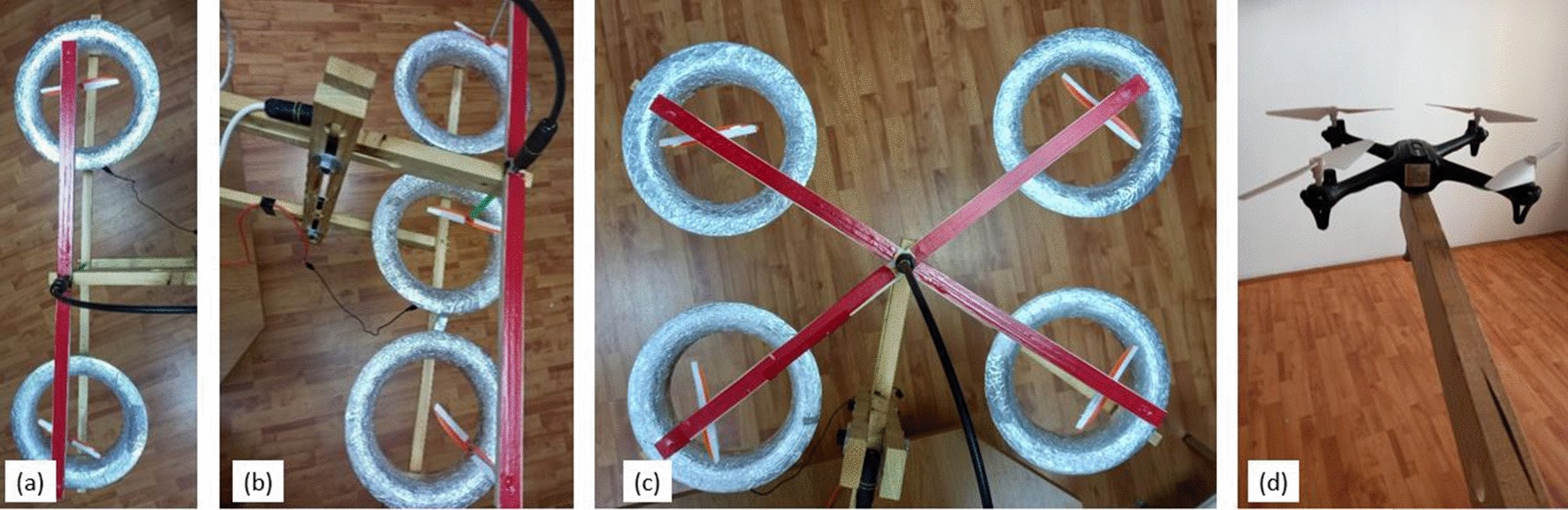

Top view of theRIE array setup mounts for ionic thrust measurements. (a) two-RIE toroidal array (b) three-RIE toroidal (c) four-RIE toroidal array. (d) mounted four-blade X15A Guangdong Syma drone; the drone generated a maximum lifting force very close the maximum thrust recorded for the 4-RIE array.
