Figure 9

From: Toroidal counter electrode for ionic propulsion

Figure 9The alternative text for this image may have been generated using AI.

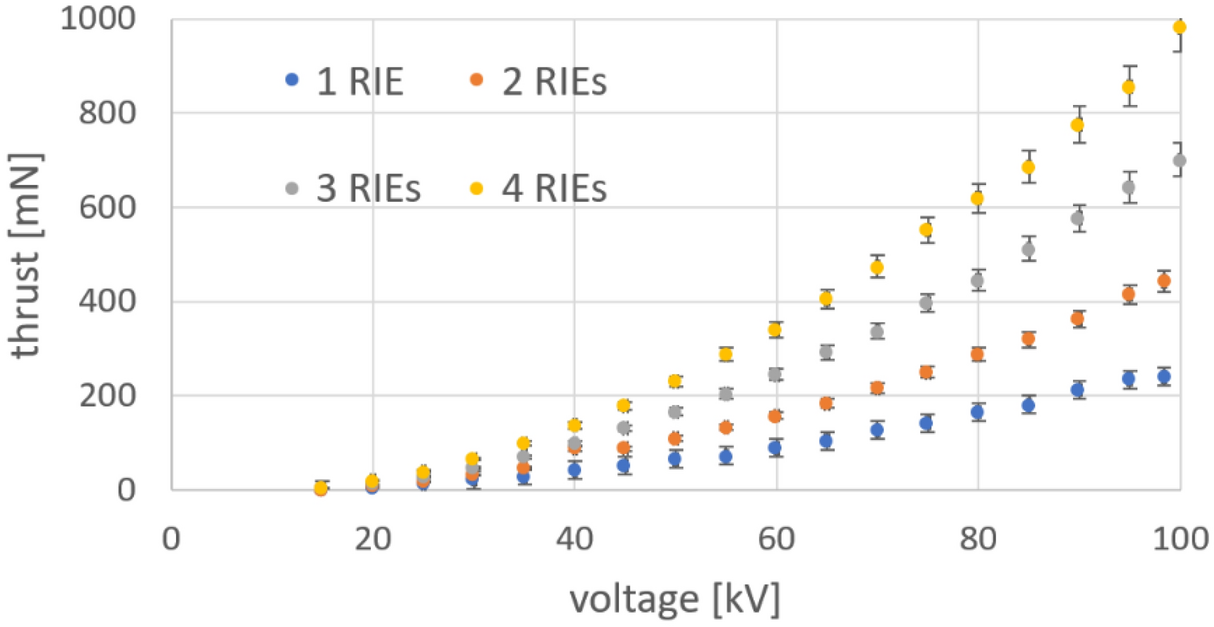

The toroidal axial thrust dependence on the voltage and the number of parallel-connected units/toroidal RIEs used. The error bars represent potential measurement errors related to setting the voltage (up to 0.2 kV) and 5% thrust errors (due to the mounting of the RIE on the measuring device and electronic scale readings.
