Figure 4
From: Cleaning of LTCC, PEN, and PCB Au electrodes towards reliable electrochemical measurements

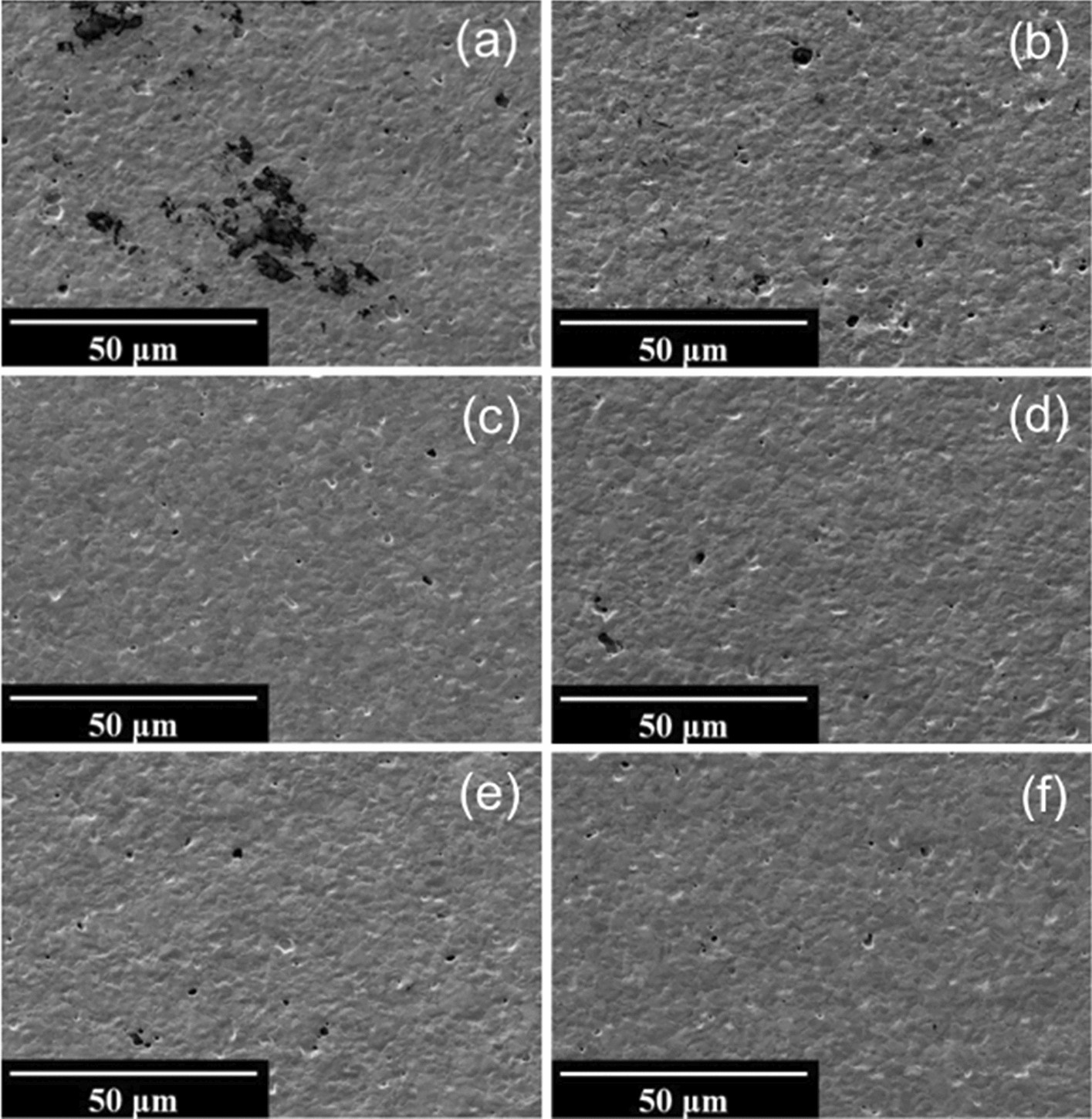

Scanning electron micrographs of LTCC surfaces (a) Uncleaned, (b) UV-O3, (c) Piranha, (d) KOH + H2O2, (e) KOH + H2O2/KOH Sweep, (f) H2SO4 CV; at 1000 × magnification.
