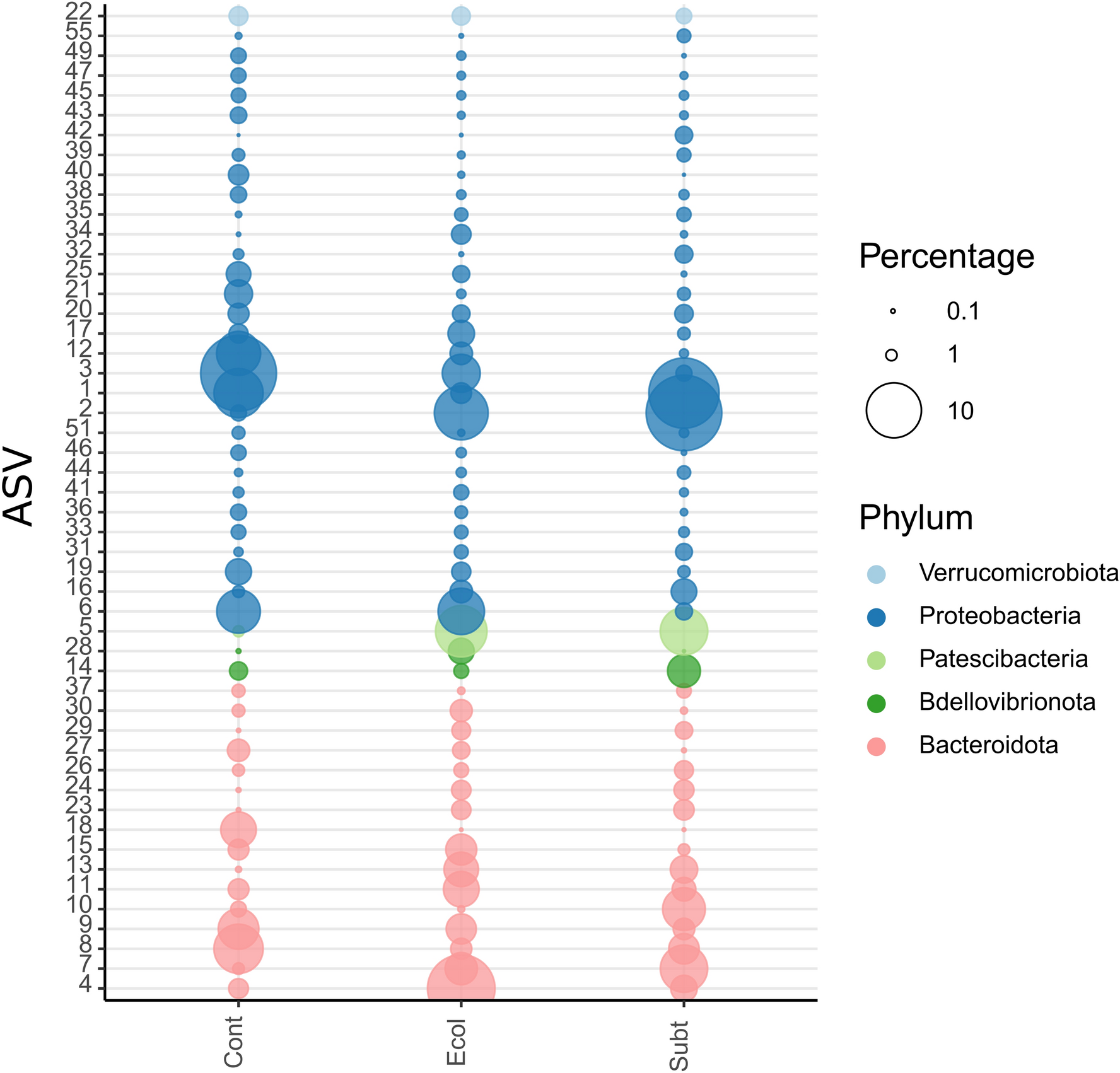

Figure 6

Relative abundances of the 50 most abundant ASVs colour-coded according to prokaryotic phylum for: Cont: Control; Ecol: E. coli DH5α; Subt: P. rubra SubTr2. The circle size of the ASV is proportional to the mean percentage of sequences per treatment as indicated by the symbol legend.
