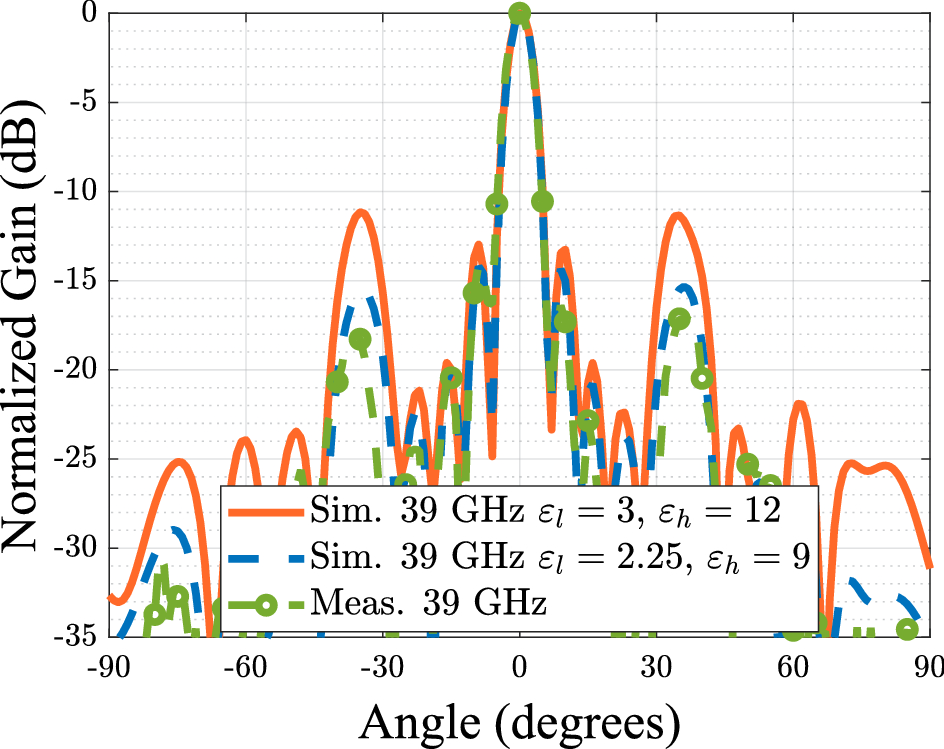

Figure 12

Comparison of the E plane radiation pattern of the antenna with fixed array antenna dimensions and the original values of permittivity with the obtained radiation pattern using permittivities 25% less than the reported values and the measured radiation pattern.
