Figure 3

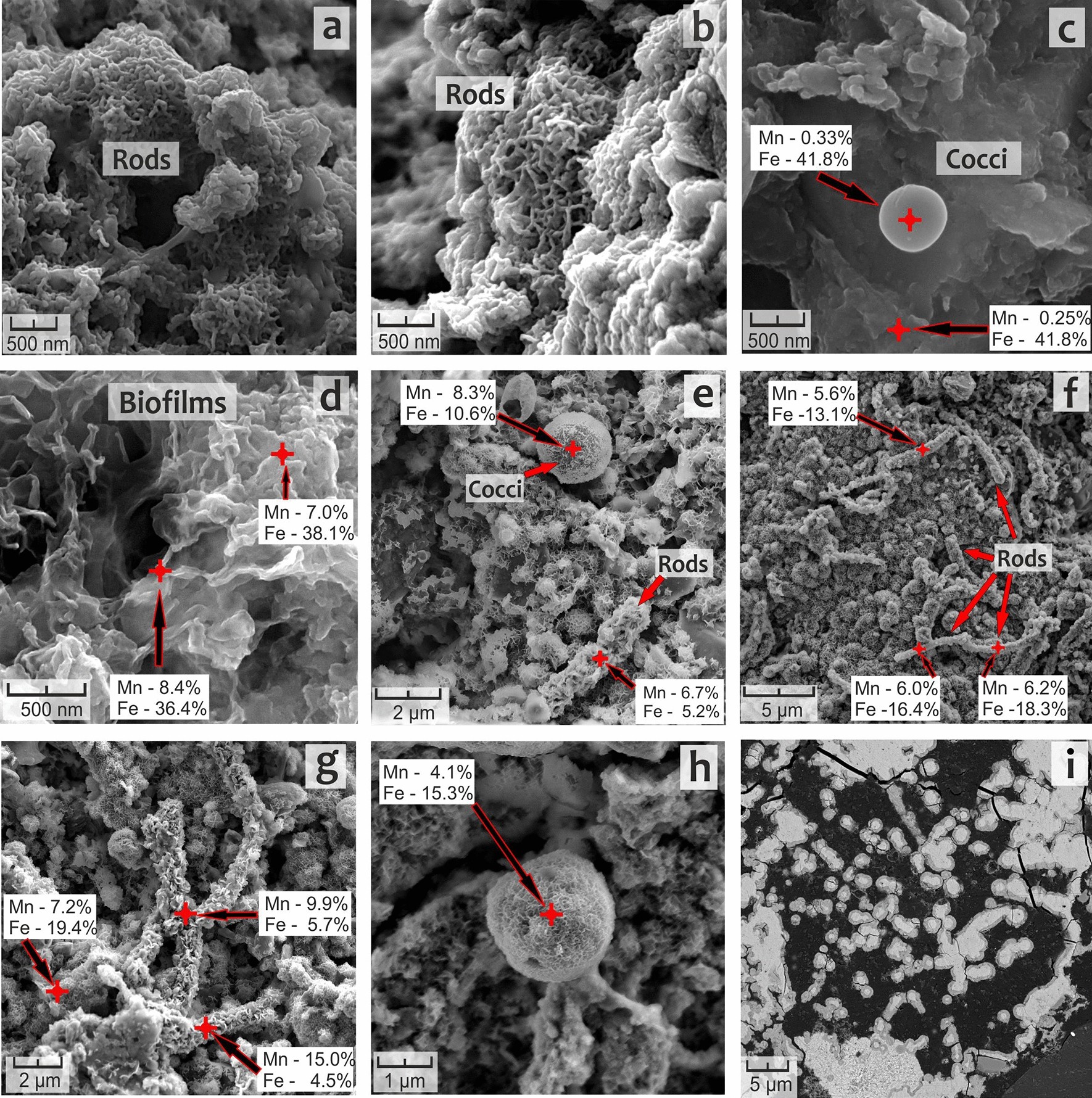

SEM images of (a–d) Fe-rich nodule (site PSh128.35) (central part of the nodule); (e–h) Mn-rich nodule (site AMK76-6259) (central part of the nodule); (i) laminated microtexture surrounding the globular structures which have the dimensions of coccoid microfossils.
