Figure 2
From: Cold-atom sources for the Matter-wave laser Interferometric Gravitation Antenna (MIGA)

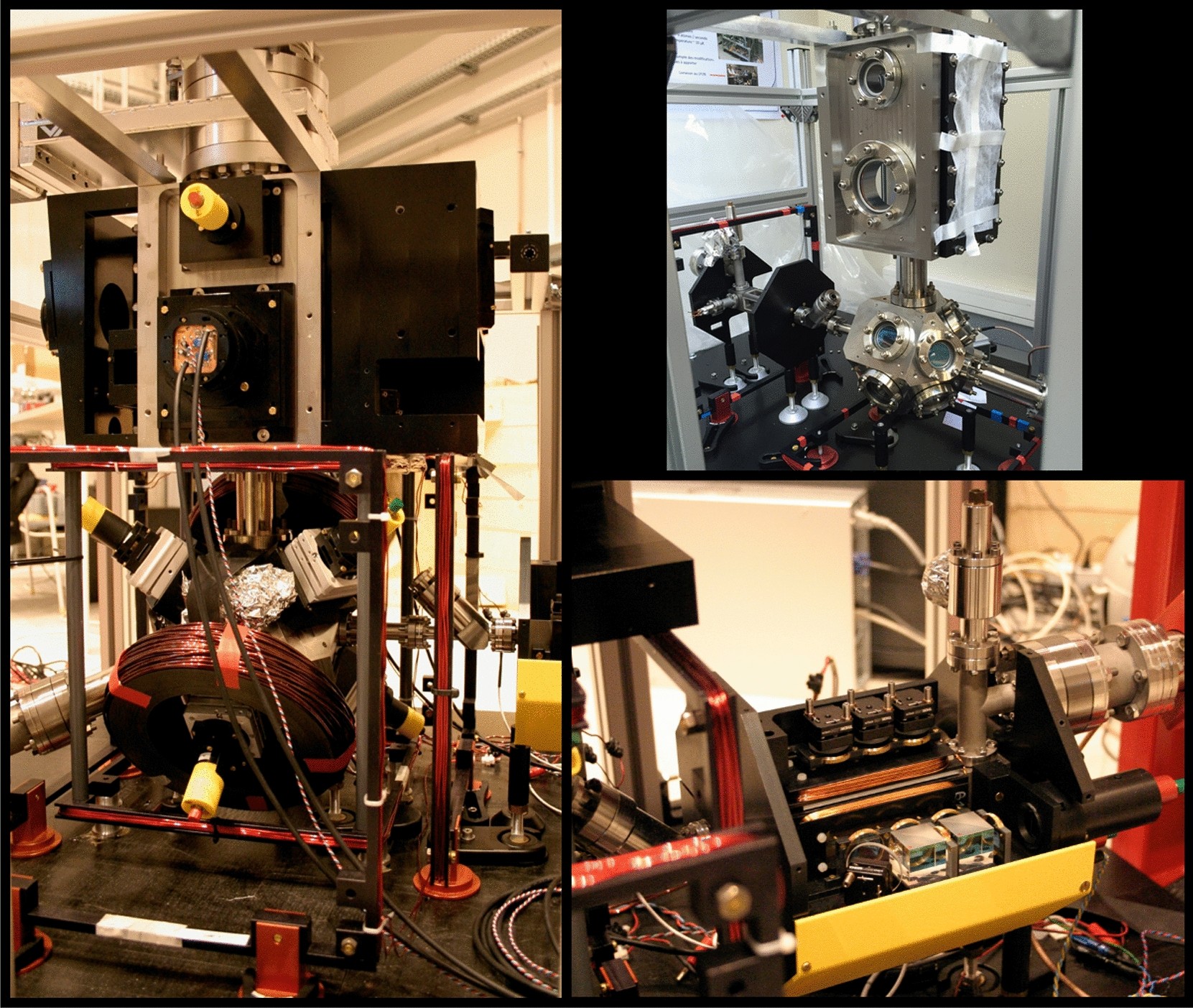

Photos of the cold atoms unit. Left: MOT and preparation/detection chamber with optics and magnetic coils. Top right: the complete vacuum system of the atom head without optics. Bottom right: The 2D MOT chamber with optics and magnetic coils.
