Figure 3

From: Functional connectivity response to acute pain assessed by fNIRS is associated with BDNF genotype in fibromyalgia: an exploratory study

Figure 3

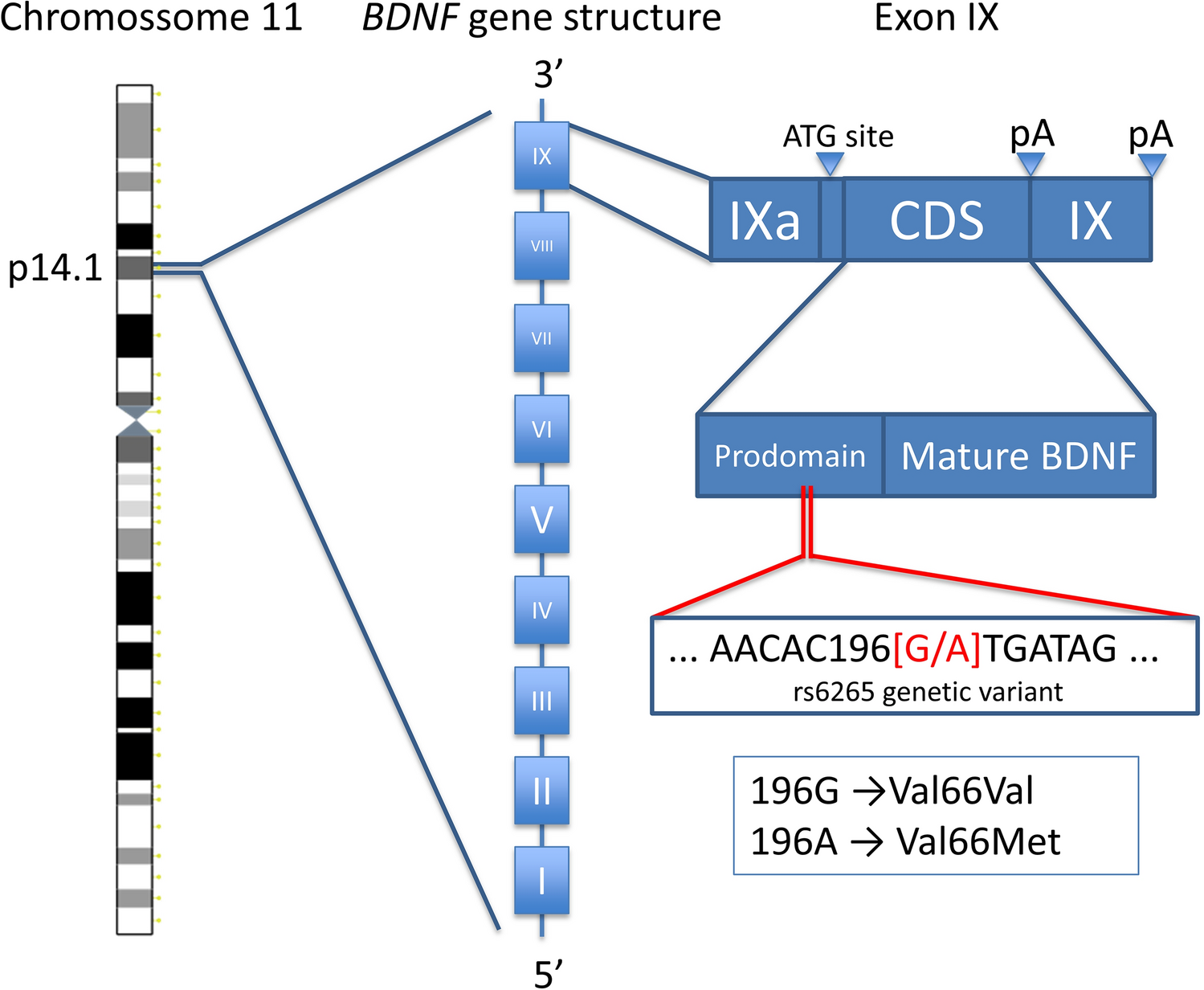

Representation of the BNDF location and structure. The Val66Met (rs6265) polymorphism of the BDNF gene consists of a substitution of valine for methionine in the BDNF prodomain. BDNF exons are represented by boxes noted with roman algorisms, while lines represent introns. The SNP locus is in the prodomain region of the IX exon. CDS coding DNA sequence. pA polyadenylation sites. ATG site initiation codon. BDNF brain-derived neurotrophic factor; Val/Val Val66Val homozygous. Val/Met Val66Met heterozygous.
