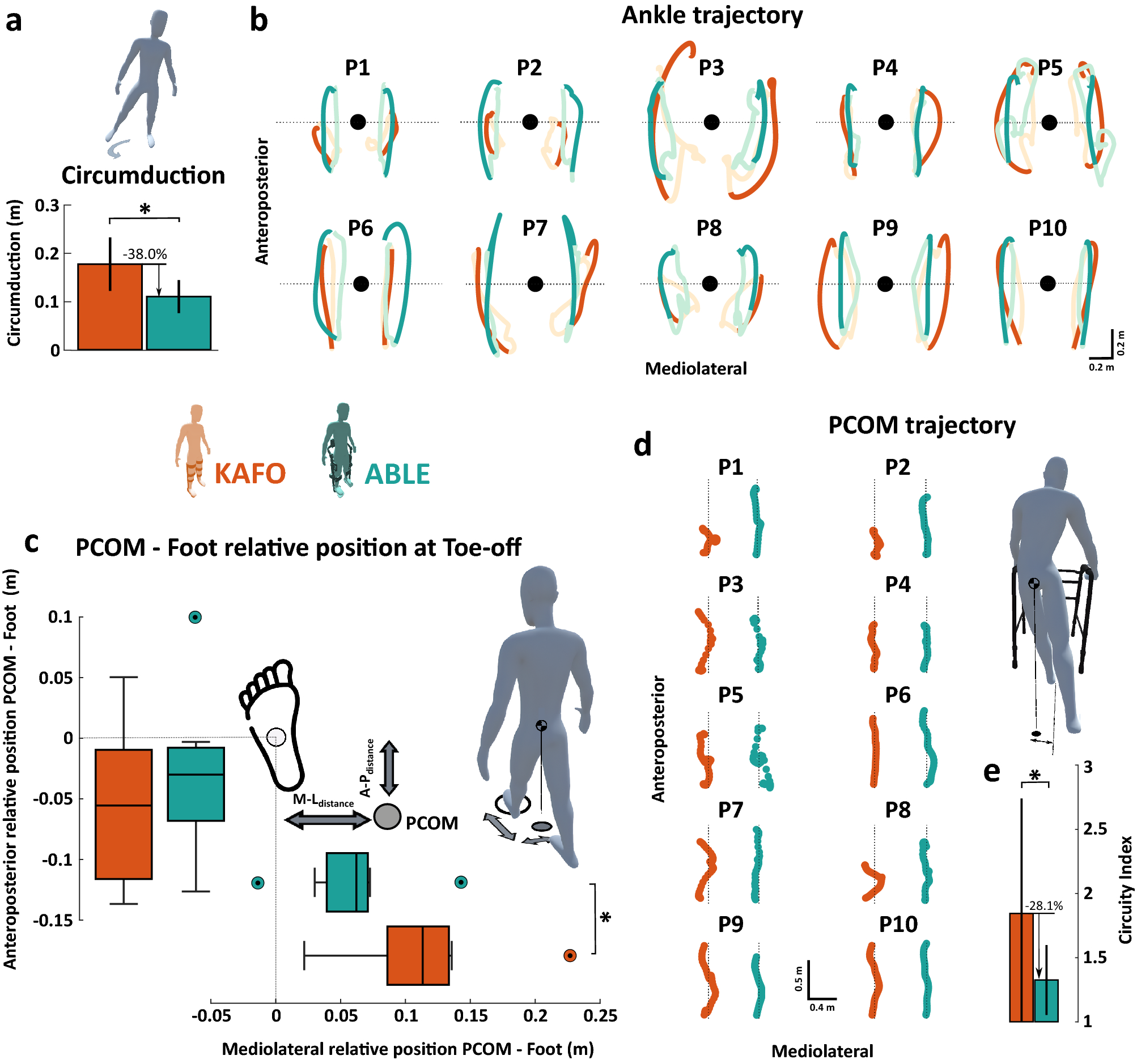

Figure 4

(a) Circumduction during the 6 MWT. Circumduction was defined as the maximum lateral difference of the ankle marker between stance and swing phase. Bars show the mean and standard deviation from all the participants. (b) The average ankle marker trajectory with respect to the PCOM in the transverse plane during the gait cycle for each participant. Black circles represent the PCOM, measured as the middle point between trochanters. (c) Box plot of the relative position of the PCOM with respect to the center of the leading foot at toe-off in both anteroposterior and mediolateral directions. Statistical analysis was done using the mean values using each device. (d) Trajectories of the PCOM (big circle) in the transverse plane during an average gait cycle for each participant. Dashed lines show the straight path to follow while walking. (e) Circuity index mean and standard deviation using each device. The circuity index is defined as the ratio of the total distance covered by the PCOM trajectory to the euclidean distance between its first and last position in the transverse plane during a gait cycle. Data were recorded during the 6 MWT. Stars (*) indicate statistically significant differences (p \(< 0.05\)).
