Figure 5
From: Integrating multiple information sources for landslide hazard assessment: the case of Italy

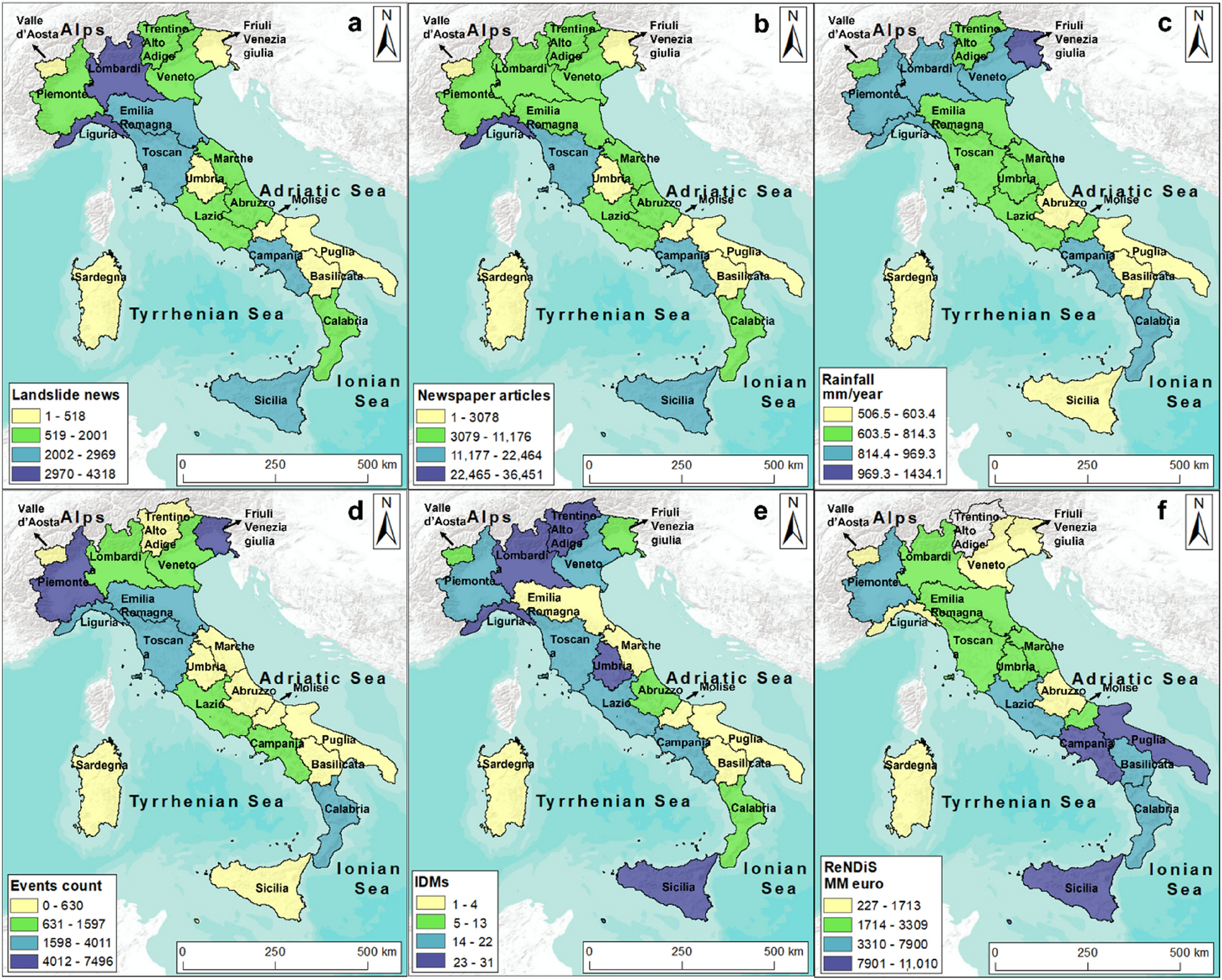

(a) Regional aggregation with “landslide news”, estimating landslide hazard; (b) regional aggregation with media impact, estimating landslide intensity; (c) regional distribution with rainfall data for 10 years (mm/10 years); (d) regional aggregation of relevant rainfall event counts (events display relevant differences in spatial distribution); (e) regional aggregation with IDMs from the Polaris dataset (the period covers only 9 years, from 2011 to 2019); (f) regional aggregation with earmarked funds for soil protection from ReNDiS (euro/10 years) for 10 years, considering landslide events. The map was generated using ESRI ArcMap 10.8.1 (https://www.arcgis.com/home/item.html?id=33064a20de0c48d2bb61efa8faca93a8).
