From: Effect of anemoside B4 on milk whey in clinical mastitis-affected cows elucidated using tandem mass tag (TMT)-based quantitative proteomics

Figure 1

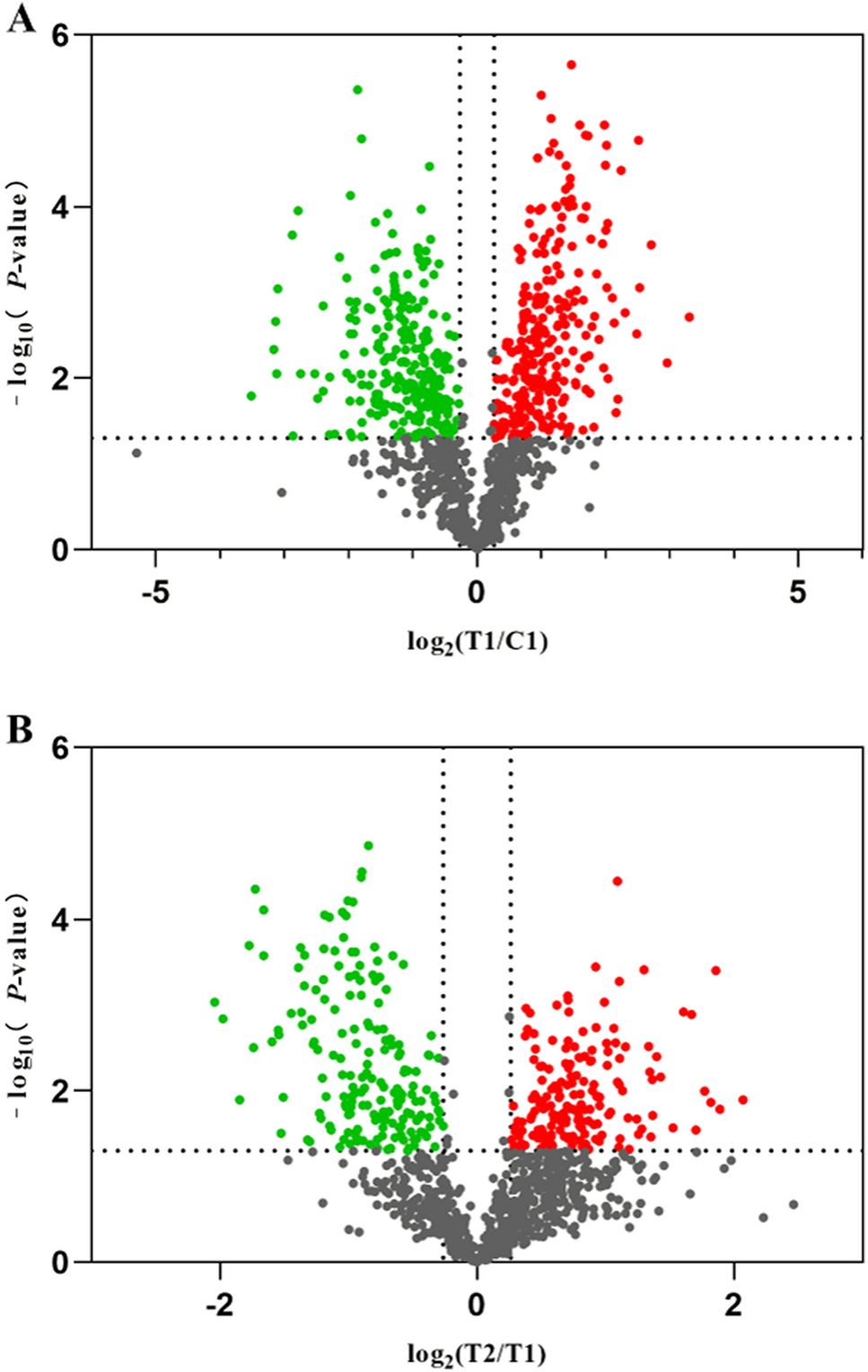

Volcano plot showing differentially abundant proteins between each group. (A) T1 vs C1; (B) T2 vs T1. The X-axis is the log of the fold-change with 2 as the base, and the Y-axis is the negative log of the p-value with 10 as the base. Gray dots show no significant difference in protein; red dots show significantly upregulated proteins, and green dots show significantly downregulated proteins.
