From: Structural informatic study of determined and AlphaFold2 predicted molecular structures of 13 human solute carrier transporters and their water-soluble QTY variants

Figure 6The alternative text for this image may have been generated using AI.

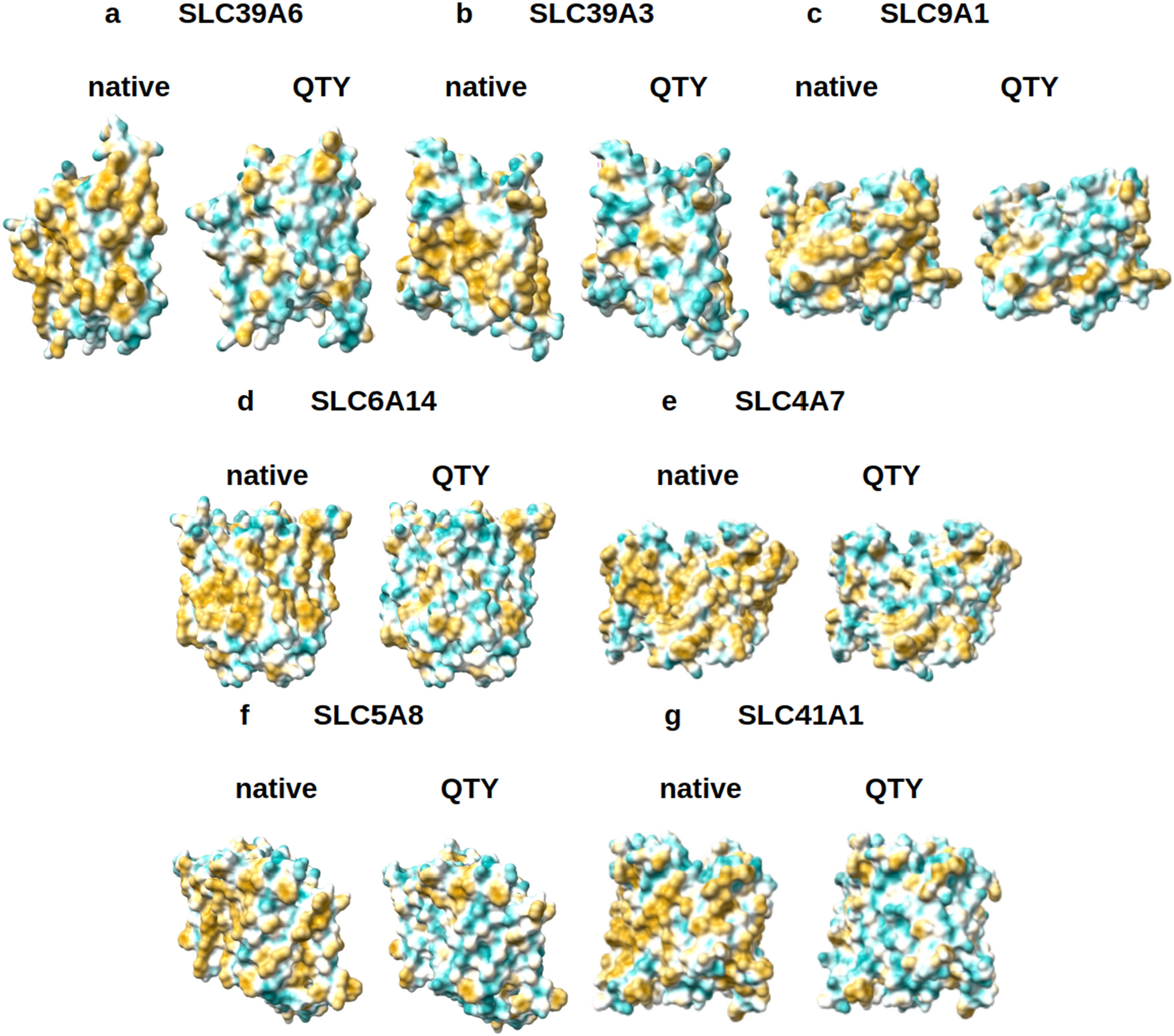

Hydrophobic surface of 8 AlphaFold2 predicted native solute carrier transporters and their QTY variants. The pairwise of AlphaFold2 predicted native transporters with hydrophobic surface (brownish color), and the QTY variant transporters (cyan color). (a) SLC39A6 versus SLC39A6QTY, (b) SLC39A3 versus SLC39A3QTY, (c) SLC9A1 versus SLC9A1QTY, (d) SLC6A14 versus SLC6A14QTY, (e) SLC4A7 versus SLC4A7QTY, (f) SLC5A8 versus SLC5A8QTY, (g) SLC41A1 versus SLC41A1QTY. For clarity, the large N- terminus and C-terminus are deleted.
