Figure 11
From: The effect of differential mineral shrinkage on crack formation and network geometry

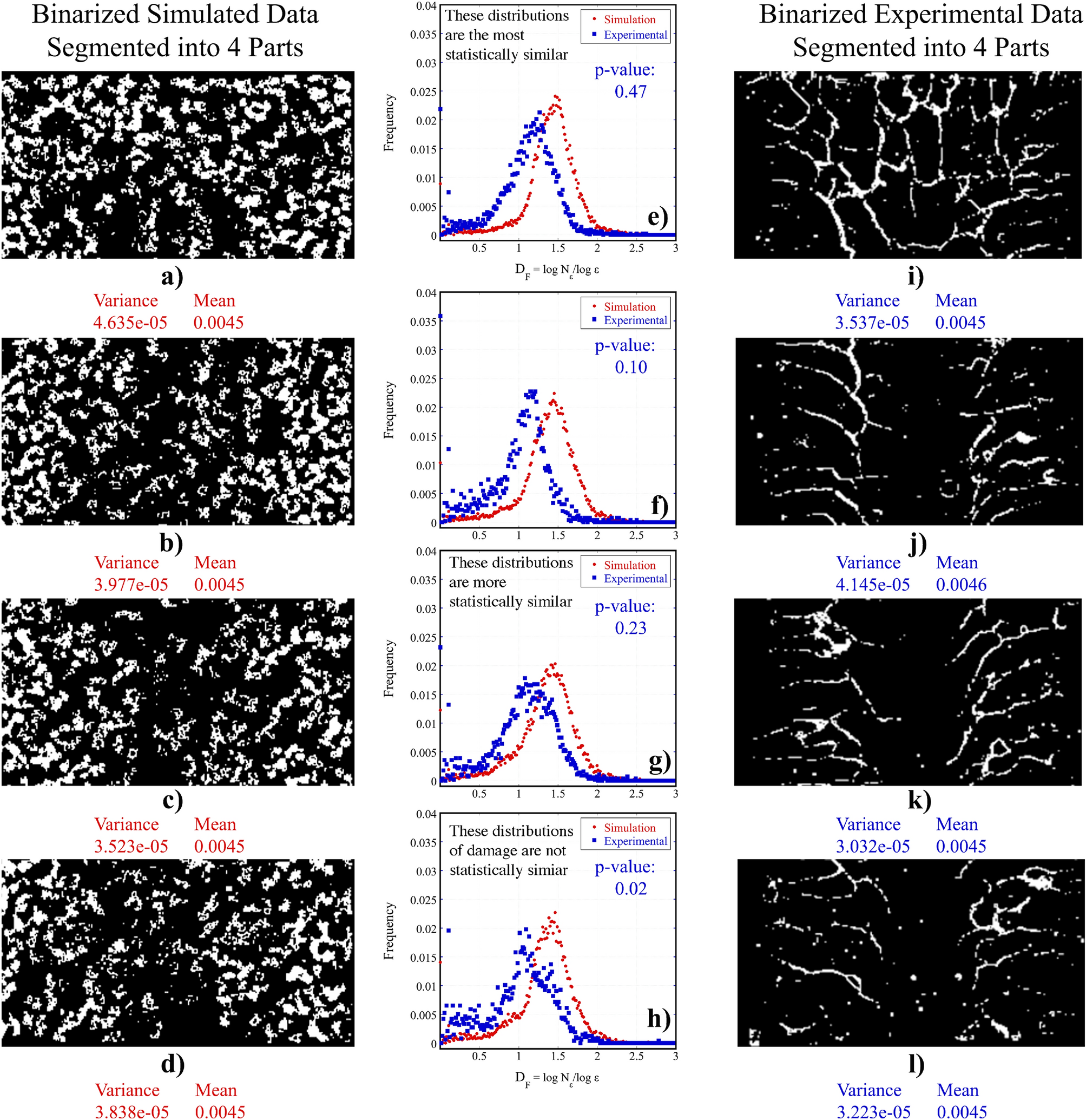

Sections of the simulated (a–d) and experimental data (i–l), plotted with histograms that compare the average distribution of the fractal dimension in each section for the simulated versus the experimental damage and estimated variances, means, K-statistics and p-values for each comparison.
