Figure 4
From: An integral method for determining the molecular composition of lignin and its application

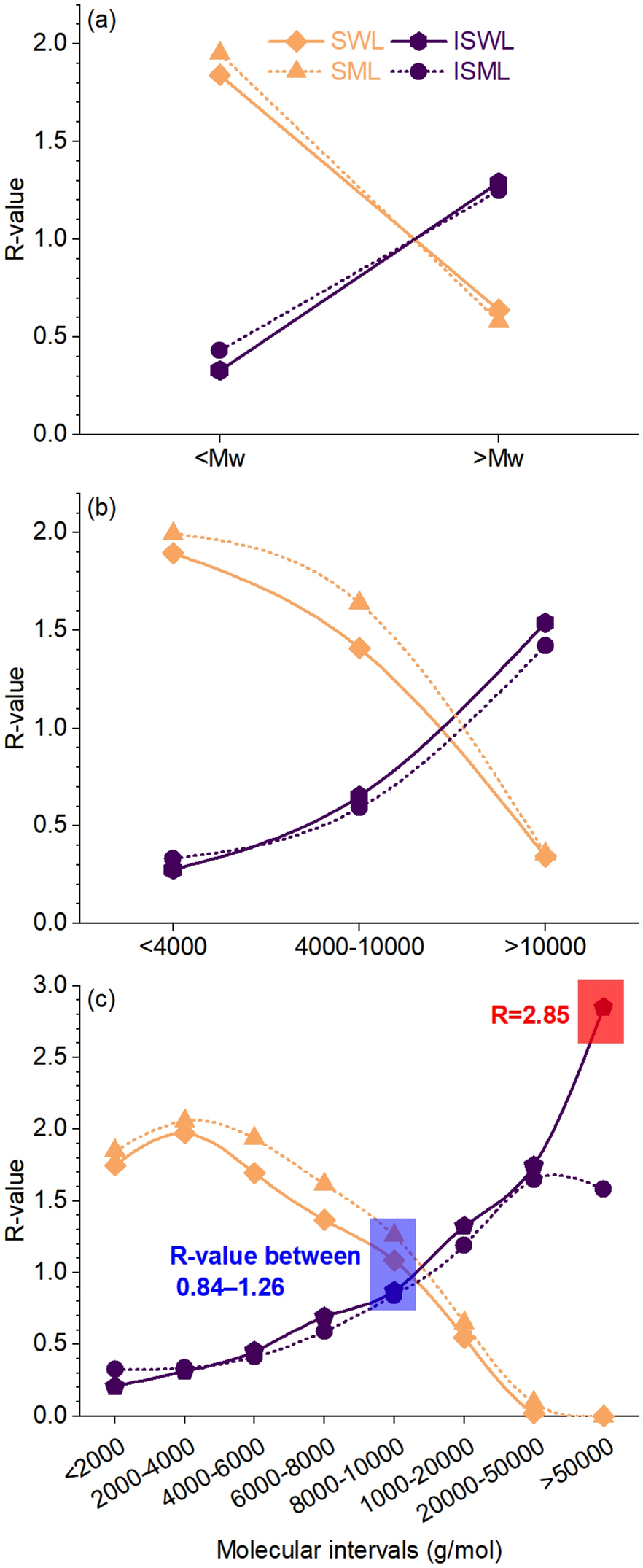

Ratio (R) between the yields of the fractions belonging to a certain molecular interval and the yield of fraction: R under (a) 2, (b) 3, and (c) 8 intervals; Mw was 5653 for WL and 6553 for ML.
