Figure 10
From: Comparative study on high-pressure physical properties of monoclinic MgCO3 and Mg2CO4

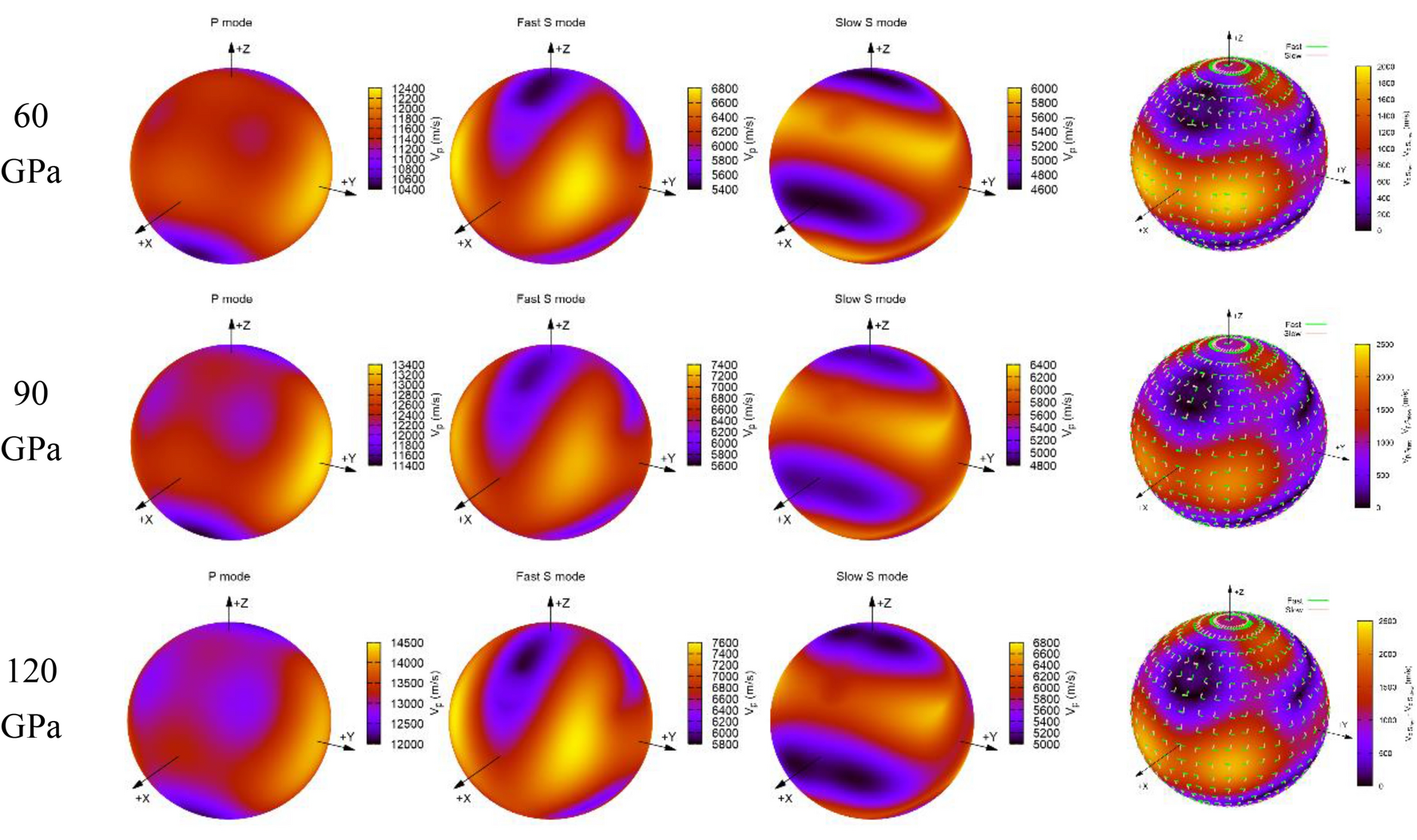

3D representation of the VP and VS and the shear wave splitting and polarization vectors of Mg2CO4-P21/c at various pressures.
Figure 10 | Scientific Reports
