Figure 9
From: Comparative study on high-pressure physical properties of monoclinic MgCO3 and Mg2CO4

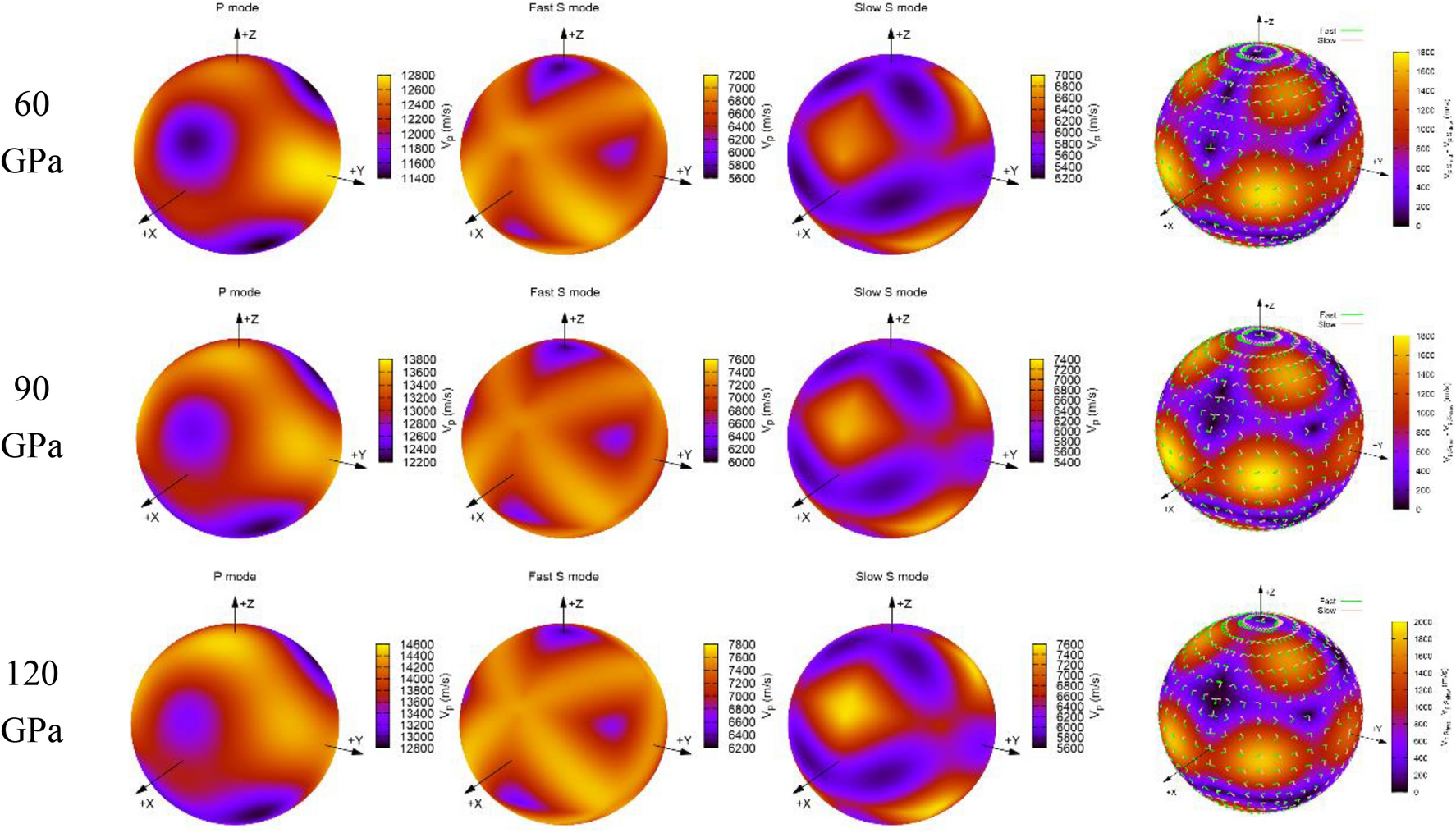

3D representation of the VP and VS and the shear wave splitting and polarization vectors of MgCO3-C2/m at various pressures.
