Figure 2

From: Reconstruction of 3D topographic landscape in soft X-ray fluorescence microscopy through an inverse X-ray-tracing approach based on multiple detectors

Figure 2

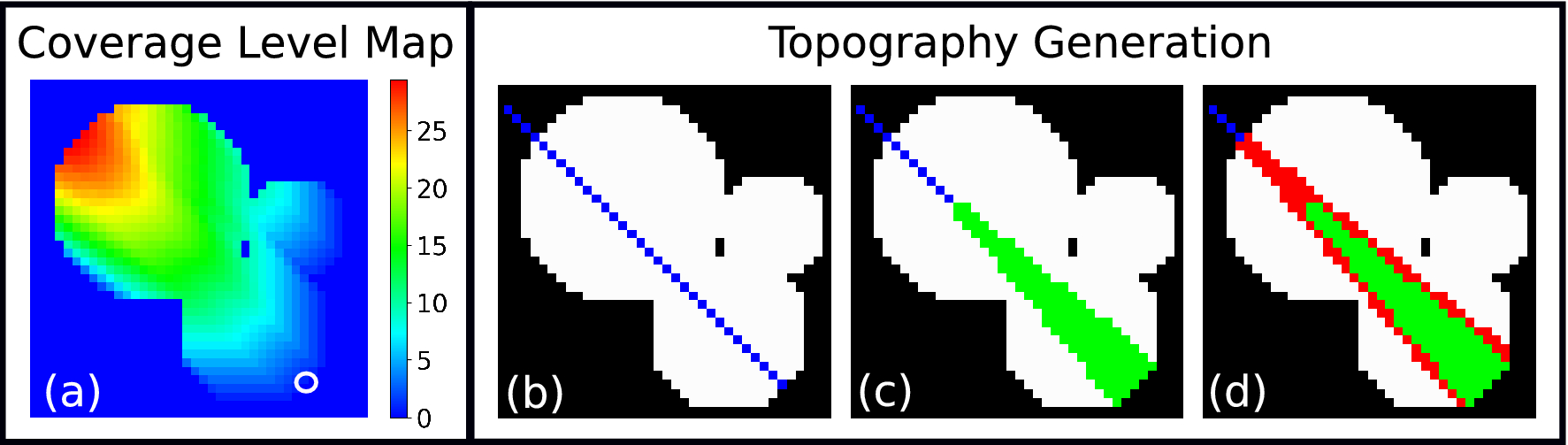

Coverage level map for the South-East SDD (a), showing the amount of sample in µm present between each pixel and the detector’s center. A first seed pixel, with minimal sample coverage (white circle) is picked. Other seed pixels are identified along the line (blue) connecting the SDD’s center with this first seed (b). The reconstruction process initializes through a first conical region of interest (c), which is resolved and fixed before moving onto the next region (d).
