Figure 6

From: Reconstruction of 3D topographic landscape in soft X-ray fluorescence microscopy through an inverse X-ray-tracing approach based on multiple detectors

Figure 6

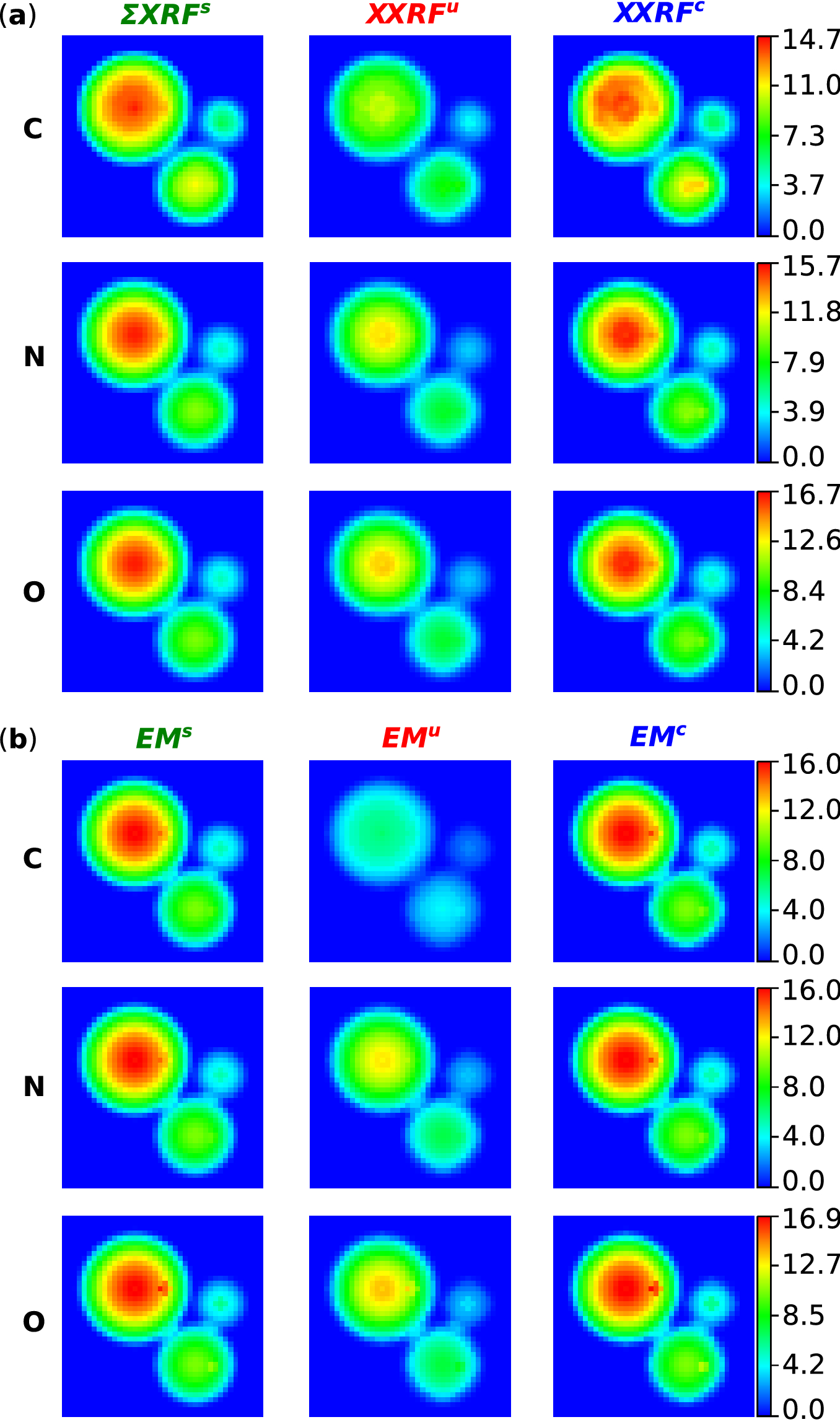

Sum of the count rates in logarithmic scale, across all the SDDs of the \(\Sigma XRF\) maps (a) and of the \({EM}_{ij}\) matrices (b), for elements C, N and O included in the simulation, specifically for the line \({K}_{\alpha }\) and for the simulated, absorption uncorrected and absorption corrected data respectively.
