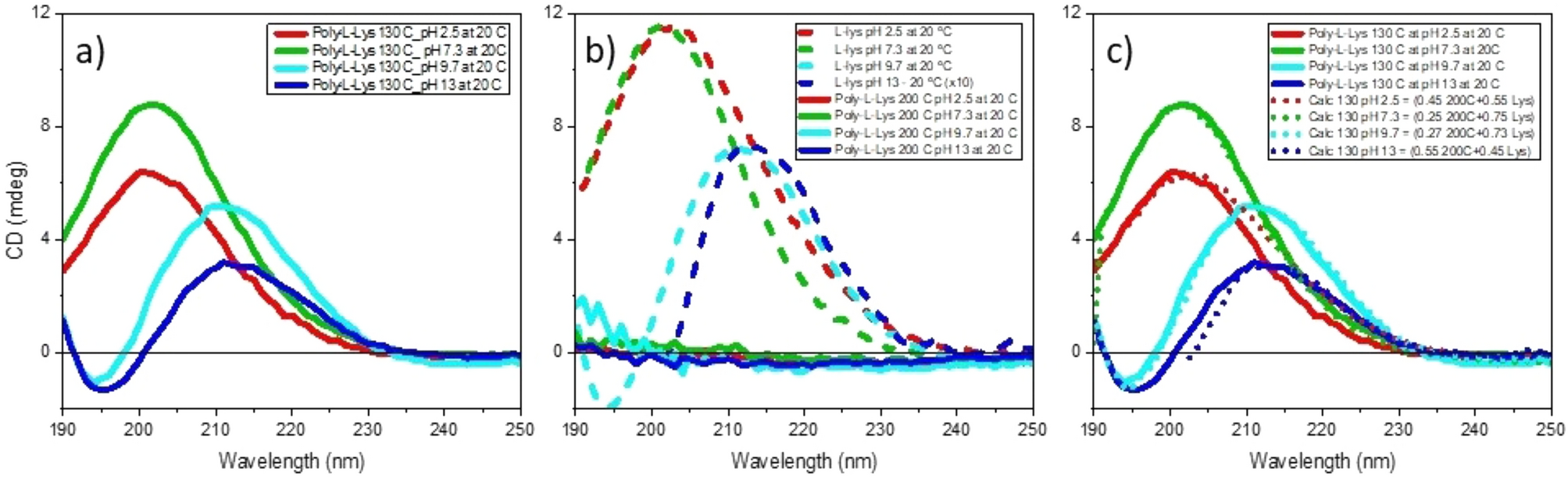

Figure 9
(a) CD spectra of HT-130 °C poly-l-lysine prepared from l-lysine aqueous solutions at different pHs (2.5, green line; 7.3, sky blue line; 9.7, red line; blue, 13). The samples have been measured at 20 °C. (b) CD spectra of HT-200 °C poly-l-lysine prepared from l-lysine aqueous solutions at different pHs (2.5, green line; 7.3, sky blue line; 9.7, red line; blue, 13). The samples have been measured at 20 °C. The CD spectra of pure l-lysine in aqueous solutions at different pH are the dashed lines. (c) CD spectra of HT-130 °C poly-l-lysine from the figure a, overlapped to the simulated CD spectra shown as dotted lines. The simulations have been performed by adding different fractions of HT-200 °C PLL (see Fig. 10b) to the corresponding l-lysine aqueous solutions. The CD spectra of l-lysine at pH 13 is normalised because it has been measured with 0.1 cm path length instead of 0.01 cm employed in the other measures.
