Figure 2

From: Zinc-modified phosphate-based glass micro-filler improves Candida albicans resistance of auto-polymerized acrylic resin without altering mechanical performance

Figure 2

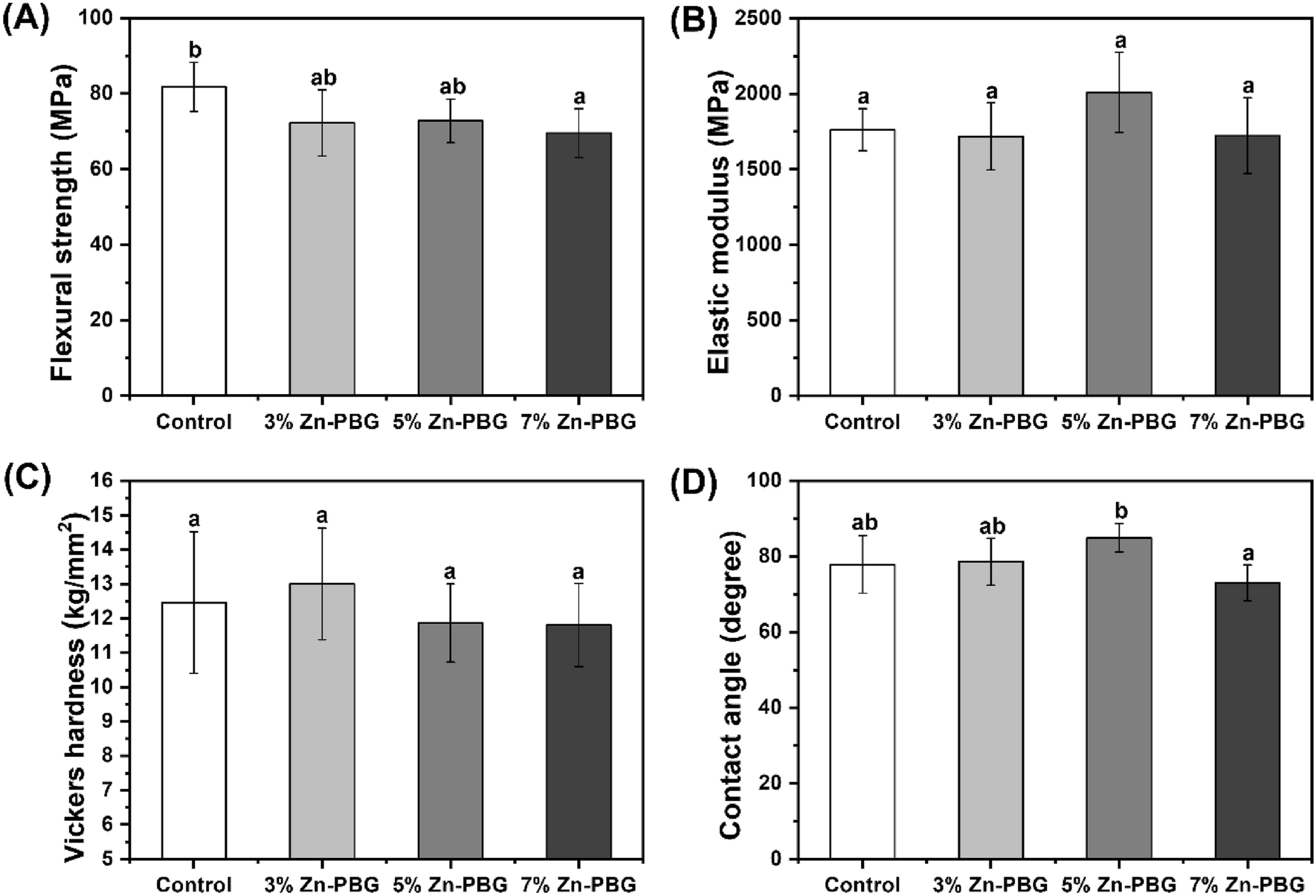

Physical and mechanical properties of different auto-polymerized acrylic resin specimens; each value represents the mean of seven measurements and the error bars show the standard deviation of the mean (mean ± standard deviation; n = 7). Different lowercase letters above a bar indicate a significant difference at p < 0.05. (A) Flexural strength. (B) Elastic modulus. (C) Microhardness. (D) Contact angle.
