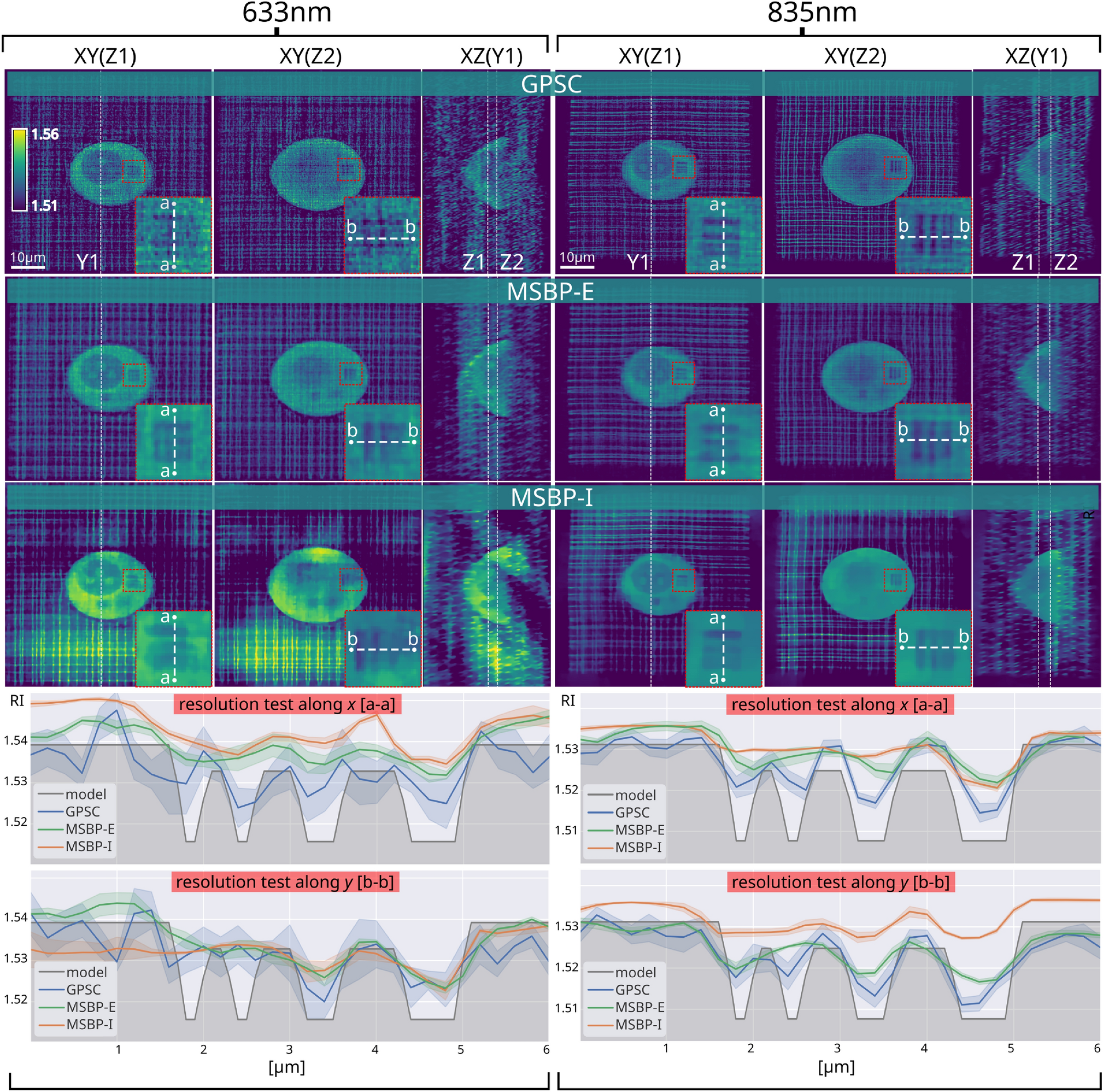

Figure 2
Comparison of tomographic reconstructions of the microphantom measured with 633 nm and 835 nm wavelength and calculated with 3 algorithms. The shaded colored regions surrounding each of the 1D plots at the bottom represent the standard deviation.
