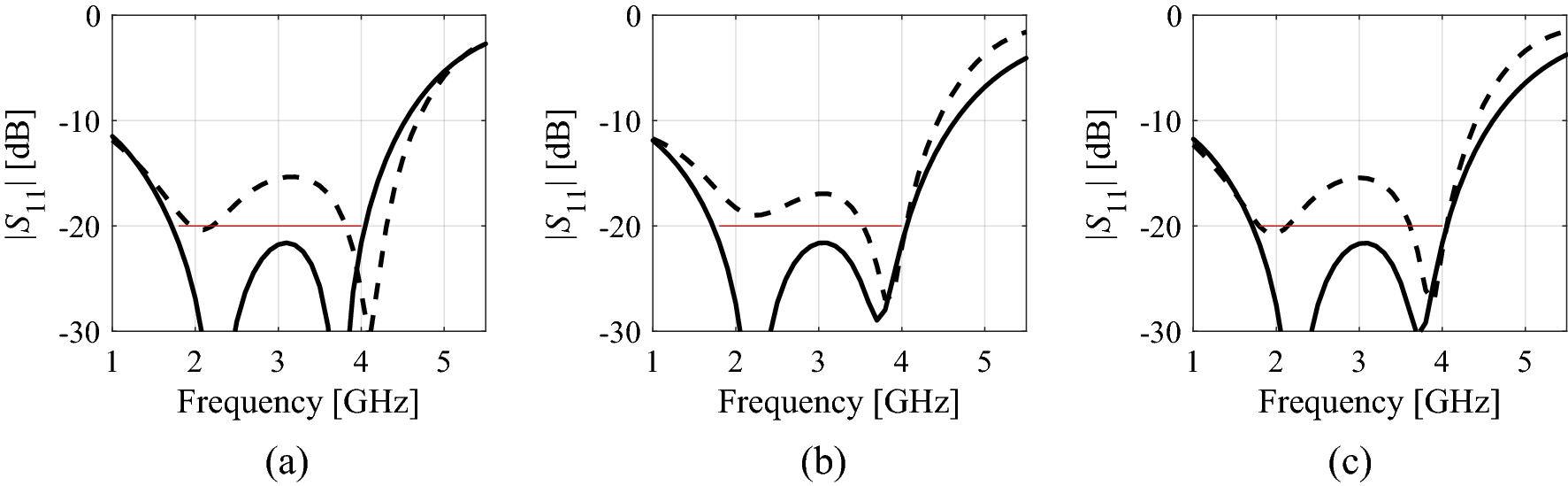

Figure 10

Structure III responses obtained in selected runs of the proposed algorithm: (a) run 1, (b) run 2, (c) run 3: design found after the global search stage (- - -), final design (—). The horizontal line marks the intended operating bandwidth, here, from 1.8 GHz and 4.0 GHz.
