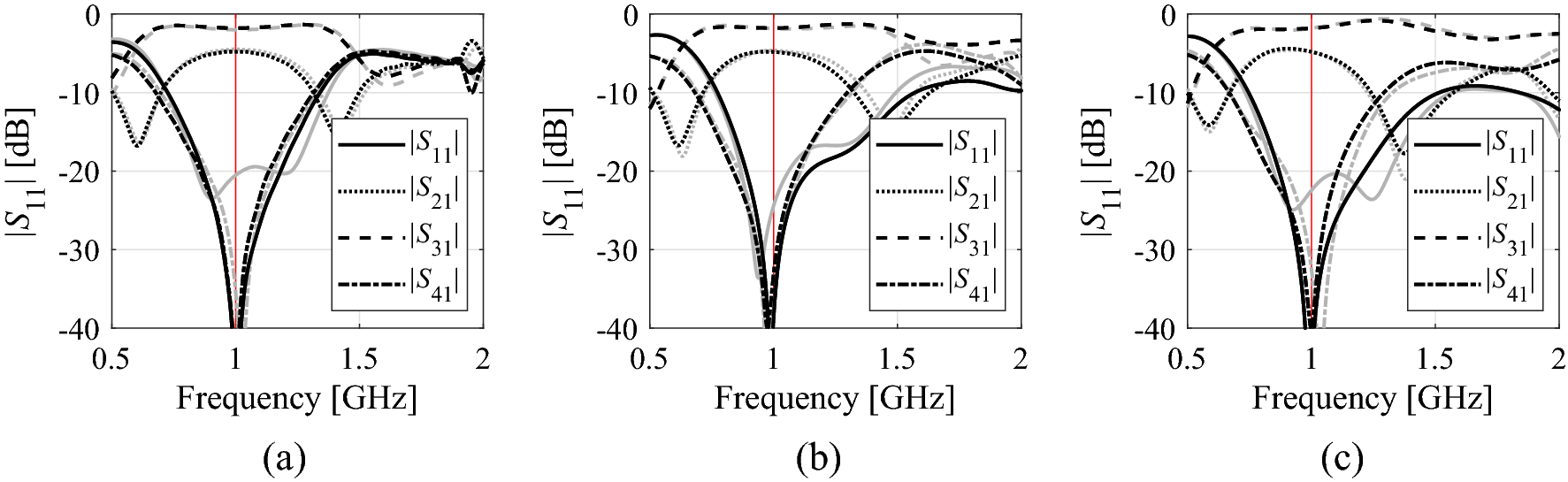

Figure 9
Structure II responses obtained in selected runs of the proposed algorithm: (a) run 1, (b) run 2, (c) run 3: design found after the global search stage (gray), final design (black). The vertical line marks the target operating frequency of 1Â GHz.
