Figure 3
From: Increased biventricular hemodynamic forces in precapillary pulmonary hypertension

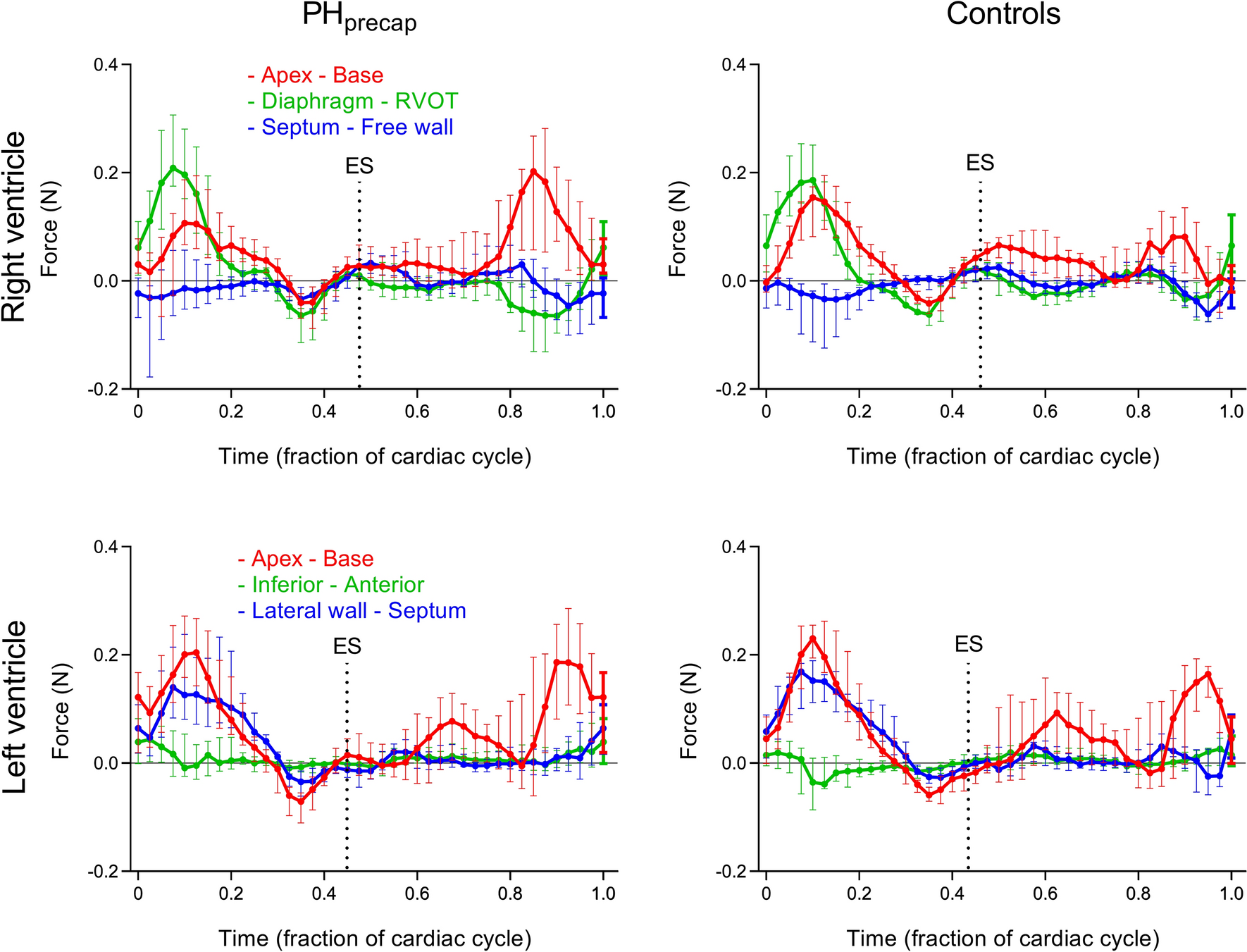

Right (top row) and left (bottom row) ventricular hemodynamic forces over one cardiac cycle in patients with precapillary pulmonary hypertension (PHprecap, left column) compared to healthy controls (right column). Force patterns are presented as median and interquartile range for each time point in all three directions respectively. Individual force curves for patients and controls are shown in Supplementary Figs. 2 (RV) and 6 (LV). ES, end systole; RVOT, right ventricular outflow tract.
