Figure 2 | Scientific Reports

Figure 2

From: Intestinal preservation in a birdlike dinosaur supports conservatism in digestive canal evolution among theropods

Figure 2

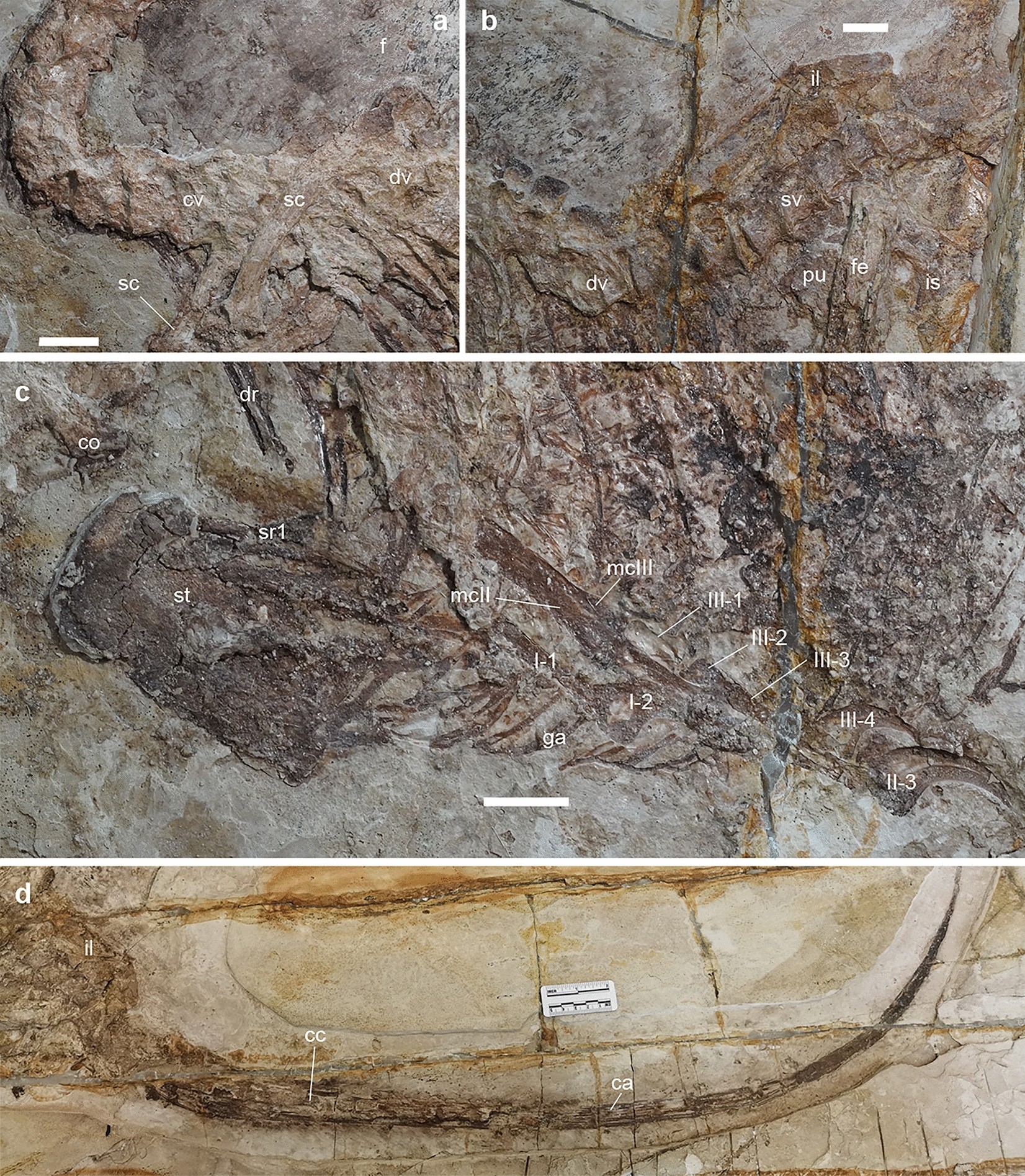

Selected elements of Daurlong wangi holotype. (a), neck and pectoral region. (b), thoraco-sacral series. (c), ventral part of the belly region. (d), tail. Abbreviations: ca, caudotheca; cc, caudal centrum; co, coracoid; cv, cervical vertebrae; dr, dorsal rib; dv, dorsal vertebrae; f, feathers; fe, femur; ga, gastralia; I-/II-/III-, phalanges; il, ilium; is, ischium; mc, metacarpal; pu, pubis; sc, scapula; st, sternum, sr1, sternal rib1, sv, sacral vertebrae. Scale bars in (a-c) = 20 mm.
