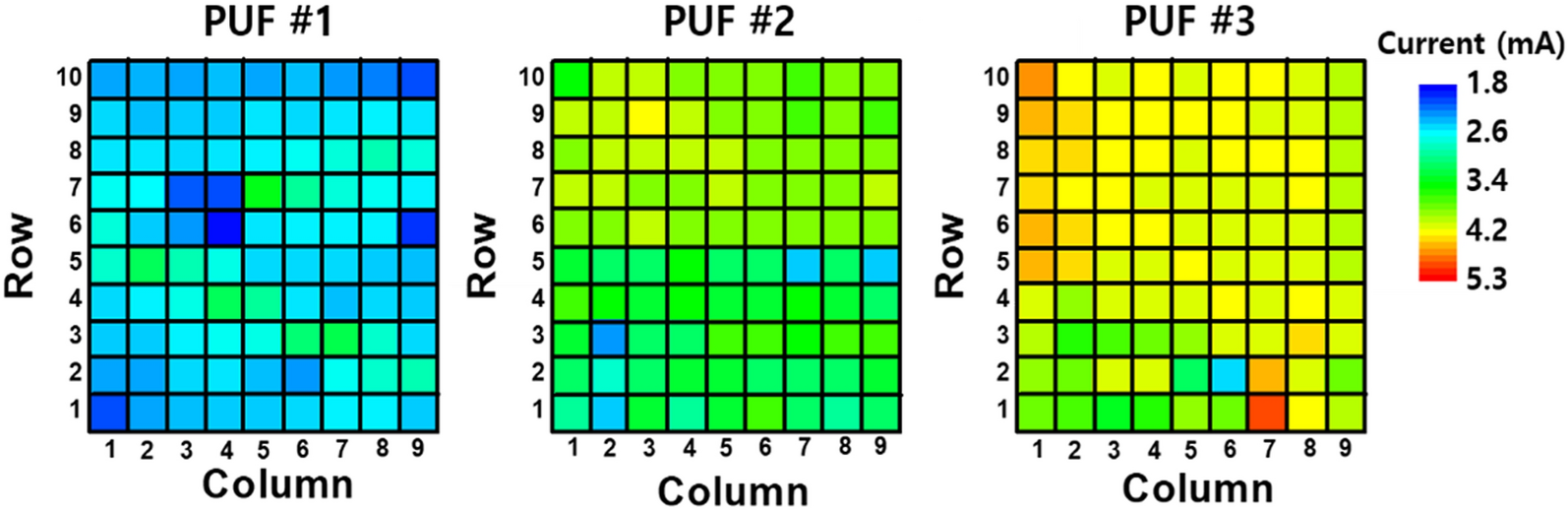

Figure 2

Resistance variation of carbon nanotube-based conductive nanomesh. Each pixel indicates the cell current value measured for 0.5 V/10 ns. All M13-SWNT based PUFs have different resistance values at the same position, indicating that they can generate different responses to the same challenges.
